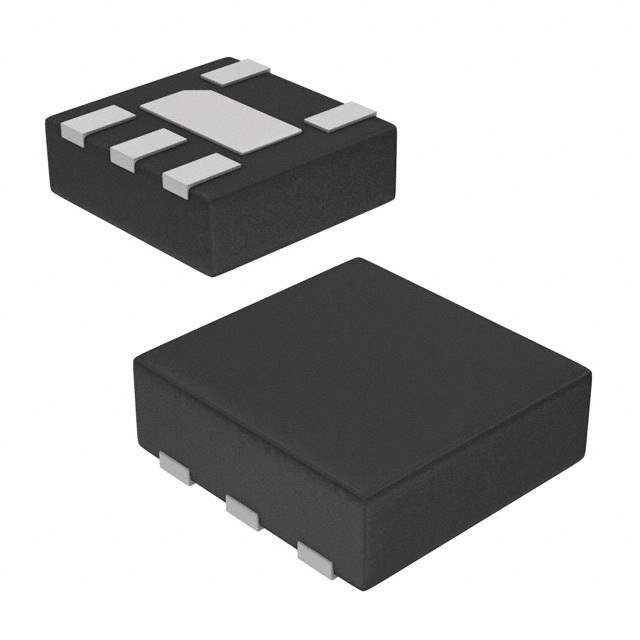

VESD05A4A-HS4-GS08 Real Image
Same model may have multiple batches, images only for reference.

VESD05A4A-HS4-GS08

Part No VESD05A4A-HS4-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Uni-Dir 5V 6-Pin LLP-1010 T/R / TVS DIODE 5VWM 12VC LLP10106L
Datasheet
VESD05A4A-HS4-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12V
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Power Dissipation - Pd 30W
Applications General Purpose
Capacitance @ Frequency 12pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP1010-6L
Win Source Part Number 036255-VESD05A4A-HS4-GS08
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name VESD05A4A-HS4
Introduction Date January 27, 2008
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VESD05A4A-HS4-GS08 CAD Model

Description

The Vishay VESD05A4A-HS4-GS08 Zener diode is a surface mount device that comes in a LLP1010-6L package.

  • Manufacturer: Vishay
  • Maximum Stand-Off Voltage: 5 V
  • Minimum Breakdown Voltage: 6 V
  • Clamping Voltage: 12 V @ Peak pulse current of 2.5 A
  • Channels: Four unidirectional channels
  • Capacitance: 12pF @ 1MHz
  • Compliance: RoHS standards
  • Applications: Consumer, industrial, and automotive applications
