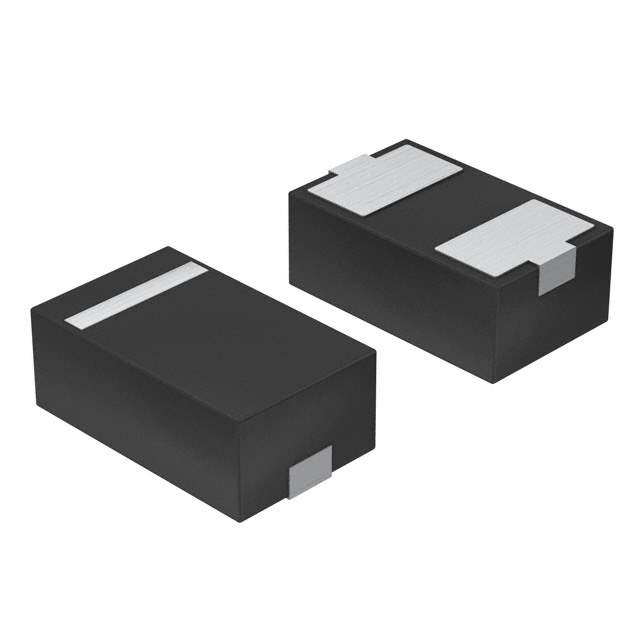

VESD05A1C-HD1-GS08

Name: VESD05A1C-HD1-GS08
Brand: Vishay
SKU: 534210
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VESD05A1C-HD1-GS08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 10VC 2LLP
Datasheet	VESD05A1C-HD1-GS08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	6V
Max Clamping Voltage	10V
Peak Pulse Current(Ippm)	8A (8/20μs)
Power Dissipation - Pd	80W
Applications	General Purpose
Capacitance @ Frequency	63pF @ 1MHz
Temperature Range - Operating	-40°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	LLP1006-2L
Win Source Part Number	1116998-VESD05A1C-HD1-GS08
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian VESD05A1C-HD1-GS08 CAD Model

Alternative Products

Description

The Vishay VESD05A1C-HD1-GS08 is a unidirectional zener diode that provides circuit protection in general purpose applications.

Stand-Off Voltage (Vwm): 5V (Max)
Minimum Breakdown Voltage: 6V
Package: LLP1006-2L
Mounting Type: Surface Mount (SMD/SMT)
Capacitance @ Frequency: 63pF @ 1MHz
Clamping Voltage: 10V
Peak Pulse Current (Ippm): 8A (8/20μs)
Operating Temperature Range: -40°C to 125°C (TJ)
Power Dissipation (Pd): 80W
Supply and Demand Status: Sufficient
