Same model may have multiple batches, images only for reference.

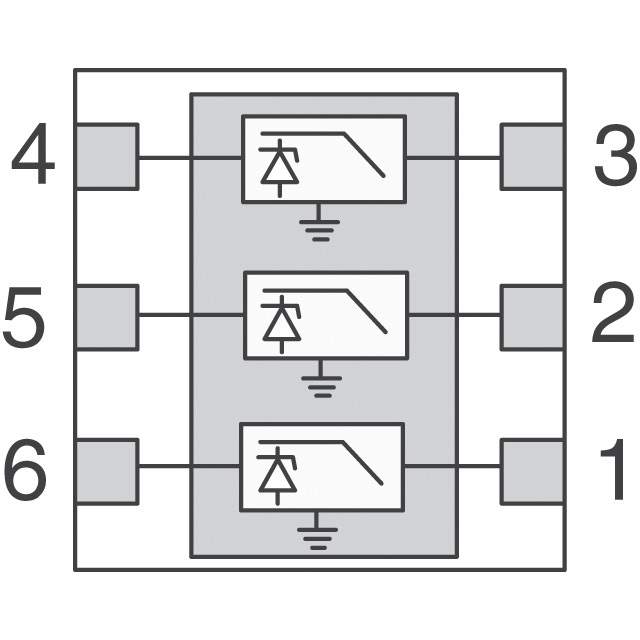

VEMI355A-HA3-GS08 Real Image
Same model may have multiple batches, images only for reference.

VEMI355A-HA3-GS08

Part No VEMI355A-HA3-GS08
Manufacturer Vishay
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 50 OHM/37PF SMD / EMI Filter Low Pass RC-Circuit Flat Style SMD T/R
Datasheet
VEMI355A-HA3-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Vishay Semiconductor Diodes Division
Packaging Reel package
Part Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 3
Center / Cutoff Frequency 100MHz (Cutoff)
Resistance - Channel (Ohms) 50
Current 4A
Values R = 50 Ohms, C = 37pF
ESD Protection Yes
Operating Temperature Range -40°C ~ 125°C
Applications Data Lines for Mobile Devices
Mounting SMD
Package 6-WFDFN Exposed Pad
Dimension 0.063" L x 0.063" W (1.60mm x 1.60mm)
Height 0.031" (0.79mm)
Win Source Part Number 799042-VEMI355A-HA3-GS08
Popularity Medium
Supply and Demand Status Limited
Family Name VEMI355A-HA3
Introduction Date August 28, 2006
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VEMI355A-HA3-GS08 CAD Model

Description

The VEMI355A-HA3-GS08 is a low pass filter that is manufactured by Vishay Semiconductor Diodes Division.

  • Application: Data Lines for Mobile Devices
  • Package / Case: 6-WFDFN Exposed Pad
  • Height: 0.031 inches
  • Current: 4A
  • Number of Channels: 3
  • Part Status: Obsolete (EOL)
  • Attenuation Value: -
  • Filter Order: 2nd
  • Center/Cutoff Frequency: 100 MHz (Cutoff)
  • Resistance: 50 Ohms
  • Dimensions: 0.063 inches L x 0.063 inches W (1.60mm x 1.60mm)
  • RoHS Compliant: Yes
  • Halogen Free: Yes
