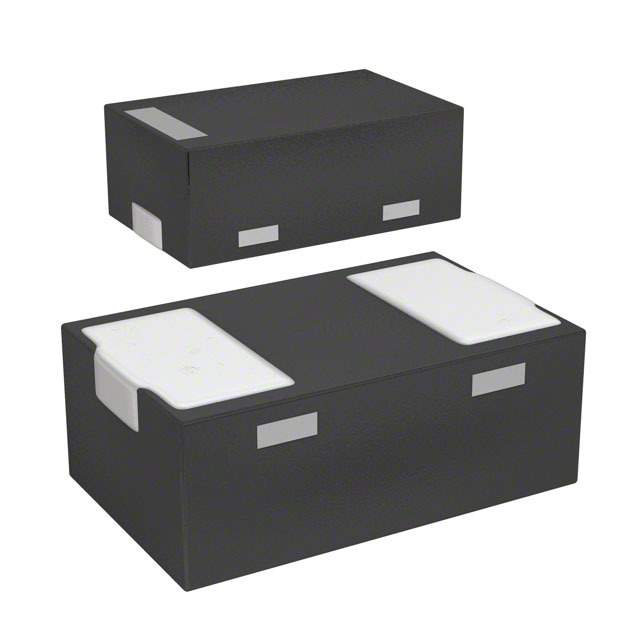

VCUT05B1-DD1-G-08 Real Image
Same model may have multiple batches, images only for reference.

VCUT05B1-DD1-G-08

Part No VCUT05B1-DD1-G-08
Manufacturer Vishay
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Bi-Dir 5.5V 2-Pin LLP T/R / TVS DIODE 5.5VWM 12.5VC 2LLP
Datasheet
VCUT05B1-DD1-G-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 38W
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Temperature Range - Operating -55°C to 145°C (TJ)
Mounting SMD (SMT)
Case / Package LLP1006-2M
Win Source Part Number 057276-VCUT05B1-DD1-G-08
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name VCUT05B1-DD1
Introduction Date September 25, 2009
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian VCUT05B1-DD1-G-08 CAD Model

Description

The 057276-VCUT05B1-DD1-G-08 is a Zener type circuit protection diode manufactured by Vishay.

  • GPTDescription: The diode is bidirectional and has a capacitance of 10pF @ 1MHz.
  • GPTDescription: The diode has a stand-off voltage of 5.5V (Max) and a minimum breakdown voltage of 6V.
  • GPTDescription: The diode can handle a peak pulse current of 3A (8/20μs) and has a power dissipation of 38W.
  • GPTDescription: The diode is packaged in a LLP1006-2M case/package and is surface mountable.
  • GPTDescription: The supply and demand status of the diode is currently sufficient.
