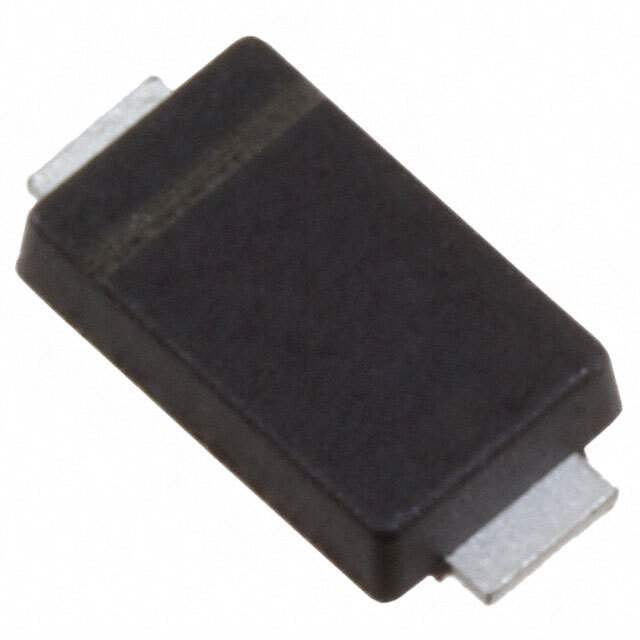

V8PAM10SHM3/I Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

V8PAM10SHM3/I

Part No V8PAM10SHM3/I
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 2.8A DO221BC
Datasheet
V8PAM10SHM3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308635-V8PAM10SHM3/I
Category Discrete Semiconductor Products >Diodes >Rectifiers Single
Mfr Vishay General Semiconductor - Diodes Division
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2.8A
Voltage - Forward (Vf) (Max) @ If 840 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 180 µA @ 100 V
Ultra Librarian 3D Model Ultra Librarian V8PAM10SHM3/I CAD Model

Description

  • Very low profile - typical height of 0.95 mm
  • Ideal for automated placement
  • Trench MOS Schottky technology
  • Low power losses, high efficiency
  • Low forward voltage drop
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
  • AEC-Q101 qualified available - Automotive ordering code: P/NHM3
