Same model may have multiple batches, images only for reference.

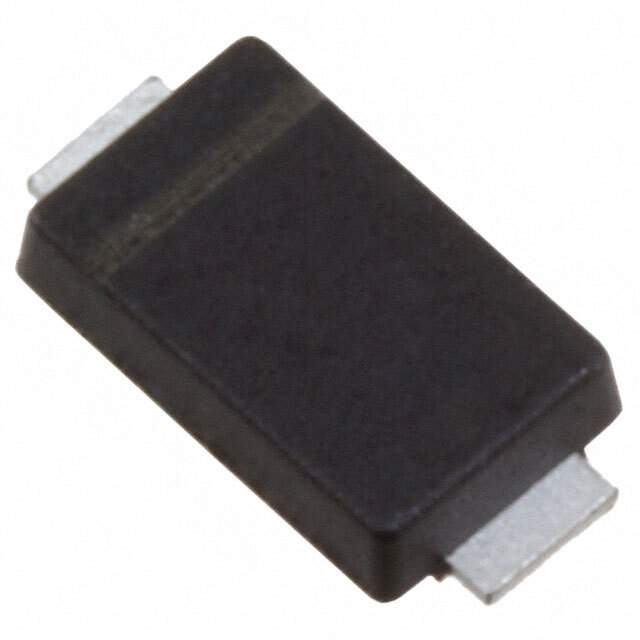

V4PAL45HM3/I Real Image
Same model may have multiple batches, images only for reference.

V4PAL45HM3/I

Part No V4PAL45HM3/I
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 3A DO221BC
Datasheet
V4PAL45HM3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Schottky 45 V 3A Surface Mount DO-221BC (SMPA)
Manufacturer Vishay
Series TMBS®
Package Reel - TR
Part Status Obsolete
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package DO-221BC, SMA Flat Leads Exposed Pad
Case / Package DO-221BC (SMPA)
Family Name V4PAL45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number V4PAL45HM3/ITR, V4PAL45HM3/ICT, V4PAL45HM3/IDKR
Quantity per package 14000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902460-V4PAL45HM3/I
Ultra Librarian 3D Model Ultra Librarian V4PAL45HM3/I CAD Model

Description

The V4PAL45HM3/I is a Schottky diode from Vishay designed for discrete semiconductor products.

  • Recovery Time: =< 500ns, > 200mA (Io)
  • Voltage: 45V
  • Current: 3A
  • Package: DO-221BC (SMPA)
  • Mounting: Surface Mount
  • Popularity: High
  • Supply and Demand: Balanced
  • Quantity per Package: 14000
  • Operating Temperature: -40°C ~ 105°C
  • Status: Obsolete
