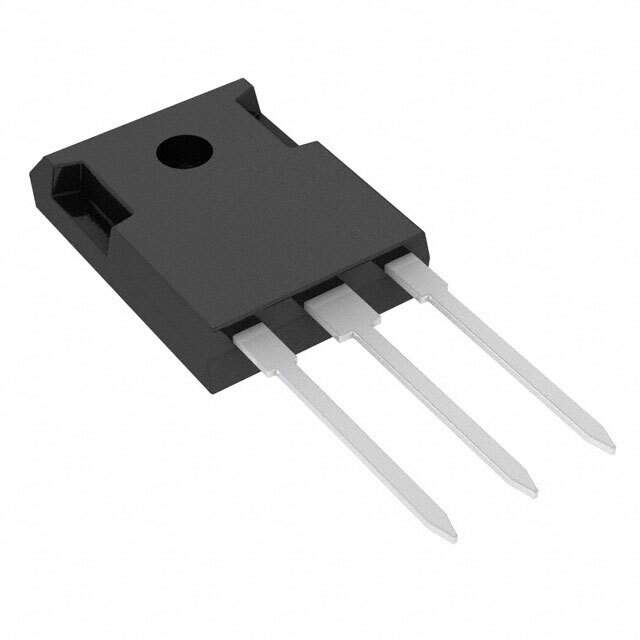

V40100P-E3/45 Real Image
Same model may have multiple batches, images only for reference.

V40100P-E3/45

Part No V40100P-E3/45
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V TO247
Datasheet
V40100P-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 730mV @ 20A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 100V
Operating Temperature - Junction -40°C to 150°C
Mounting Through Hole
Case / Package TO-247AD (TO-3P)
Win Source Part Number 057265-V40100P-E3/45
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian V40100P-E3/45 CAD Model

Description

The Vishay 057265-V40100P-E3/45 is a through-hole mounted Schottky diode with a maximum reverse voltage of 100V and a forward voltage of 730mV @ 20A.

  • Current Rating: 20A
  • Reverse Leakage Current: 1mA @ 100V
  • Diode Configuration: 1 pair common cathode
  • Package: TO-247AD (TO-3P)
  • Recovery Frequency: 200mA (Io)
  • Temperature Range: -40°C to 150°C
  • Category: Discrete Semiconductor Product
  • Part Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
