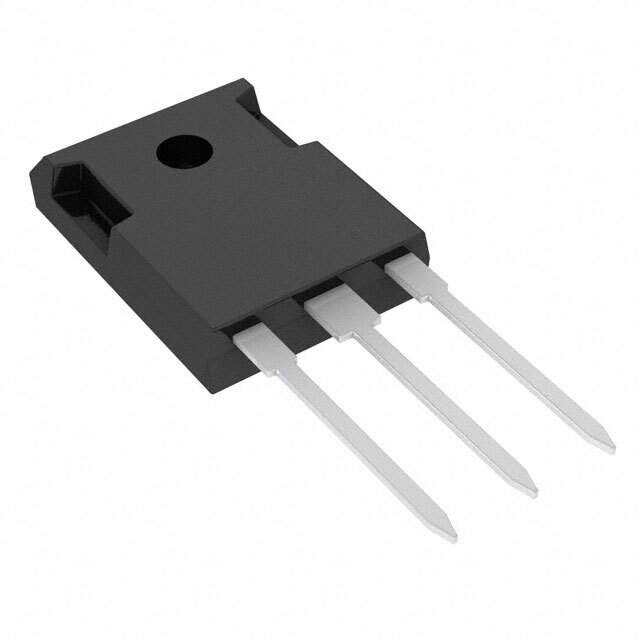

UG30CPT Real Image
Same model may have multiple batches, images only for reference.

UG30CPT

Part No UG30CPT
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 150V 30A TO3P
Datasheet
UG30CPT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.15V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 15μA @ 150V
Operating Temperature - Junction -65°C to 150°C
Mounting Through Hole
Case / Package TO-3P
Win Source Part Number 057250-UG30CPT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UG30CPT CAD Model

Description

The Vishay UG30CPT is a standard diode with a maximum reverse voltage of 150V and a forward voltage of 1.15V at 30A.

  • Maximum Reverse Voltage: 150V
  • Forward Voltage: 1.15V @ 30A
  • Reverse Recovery Time: 35ns
  • Current Leakage: 15μA @ 150V
  • Package: TO-3P package
  • Mounting: Through a hole
  • Average Rectified Current: 30A
  • Applications: Discrete semiconductor products
