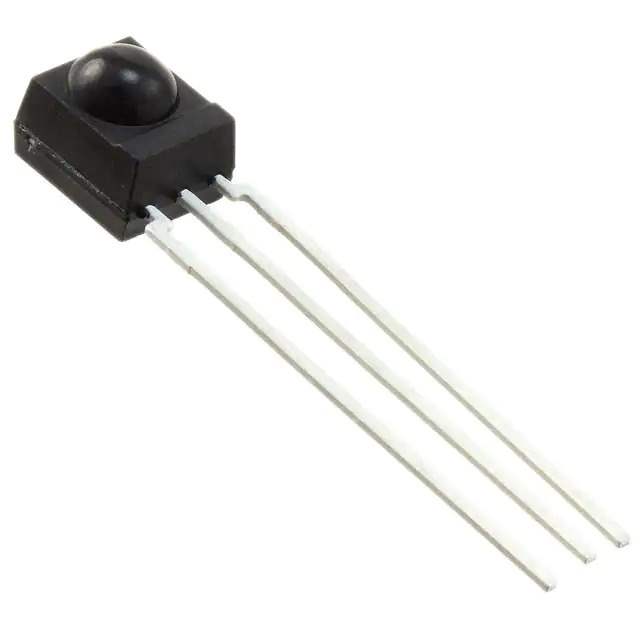

TSOP34156 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photo Detectors - Remote Receiver
Mfr Vishay
Package Tube
Product Status Active
Sensing Distance 45m
B.P.F. Center Frequency 56.0kHz
Voltage - Supply 2.5 V ~ 5.5 V
Current - Supply 350 µA
Orientation Side View
Mounting Type Through Hole
Temperature Range - Operating -25°C ~ 85°C (TA)
Base Product Number TSOP34156
Standard Package 90 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 937771-TSOP34156
Ultra Librarian 3D Model Ultra Librarian TSOP34156 CAD Model

Description

The 937771-TSOP34156 is a remote receiver photo detector from Vishay.

  • Application: Optical Sensing
  • Orientation: Side View
  • Sensing Distance: 45m
  • B.P.F. Center Frequency: 56.0kHz
  • Voltage Supply Range: 2.5V to 5.5V
  • Current Consumption: 350μA
  • Mounting Type: Through-Hole
  • Operating Temperature: -25°C to 85°C
