Same model may have multiple batches, images only for reference.

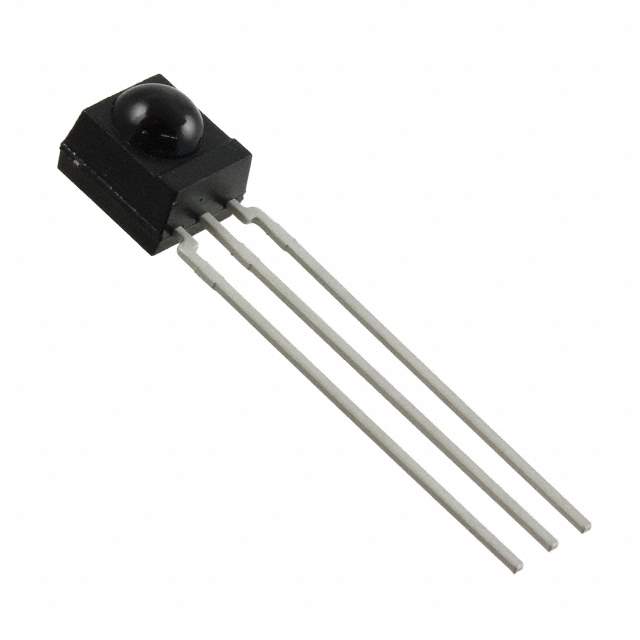

TSOP2138 Real Image
Same model may have multiple batches, images only for reference.

TSOP2138

Part No TSOP2138
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MODULE 38KHZ
Datasheet
TSOP2138 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 35m
Carrier Frequency 38.0kHz
Supply Voltage - Operating 4.5 V to 5.5 V
Operating Supply Current 1.1mA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 057145-TSOP2138
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSOP2138 CAD Model

Description

The Vishay TSOP2138 sensor is a through-hole side view sensor that can sense up to 35m.

  • Operating Supply Voltage: 4.5V to 5.5V
  • Operating Supply Current: 1.1mA
  • Carrier Frequency: 38.0kHz
