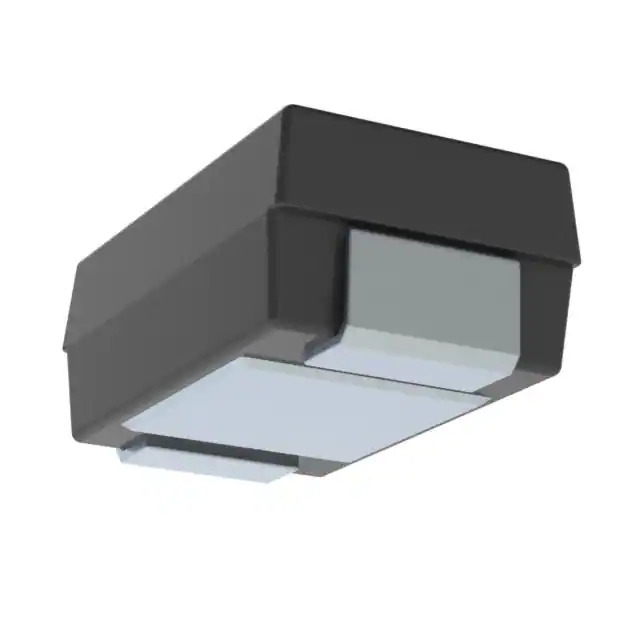

Same model may have multiple batches, images only for reference.

TR3D226K025C0200

Name: TR3D226K025C0200
Brand: Vishay
SKU: 1359805
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TR3D226K025C0200
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 22UF 10% 25V 2917 / 22 µF Molded Tantalum Capacitors 25 V 2917 (7343 Metric) 200mOhm
Datasheet	TR3D226K025C0200 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Tantalum Capacitors
Mfr	Vishay Sprague
Series	TANTAMOUNT®, TR3
Package	Tape & Reel
Product Status	Active
Capacitance	22 µF
Tolerance	±10%
Voltage - Rated	25 V
Type	Molded
ESR (Equivalent Series Resistance)	200mOhm
Temperature Range - Operating	-55°C ~ 125°C
Lifetime @ Temp.	-
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Size / Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.122" (3.10mm)
Lead Spacing	-
Manufacturer Size Code	D
Features	General Purpose
Failure Rate	-
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Win Source Part Number	1359805-TR3D226K025C0200
Ultra Librarian 3D Model	Ultra Librarian TR3D226K025C0200 CAD Model

Alternative Products

Description

The Vishay Sprague TANTAMOUNT TR3 Series Tantalum Capacitors are molded capacitors designed for general-purpose applications.

Mounting Type: Surface Mount
Capacitance: 22μF
Tolerance: ±10%
Package/Case Size: 2917 (7343 Metric)
Height: 0.122" (3.10mm)
Voltage Rating: 25V
ESR: 200mOhm
Temperature Range: -55°C to 125°C
RoHS Compliant: Yes
