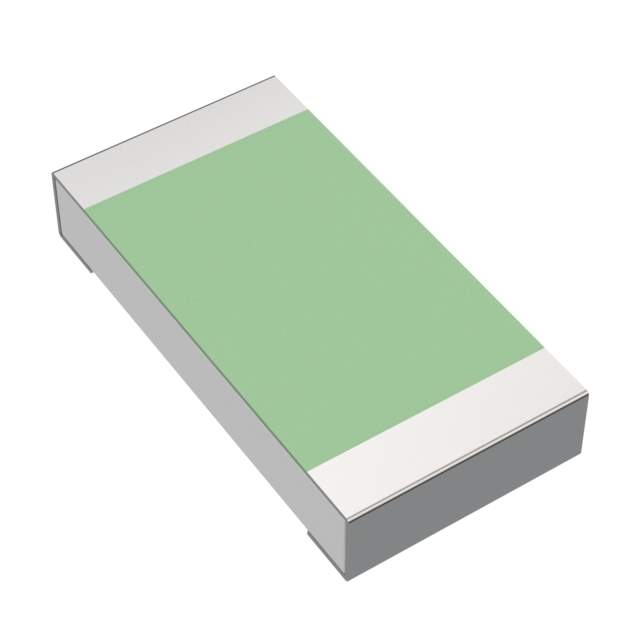

Same model may have multiple batches, images only for reference.

TNPW1206200KBEEA

Name: TNPW1206200KBEEA
Brand: Vishay
SKU: 1327197
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TNPW1206200KBEEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 200K OHM 0.1% 1/4W 1206 / 200 kOhms ±0.1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet	TNPW1206200KBEEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	Vishay Dale
Packaging	Reel - TR
Resistance	200 kOhms
Tolerance	±0.1%
Power (Watts)	0.25W, 1/4W
Composition	Thin Film
Features	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient	±25ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	1206 (3216 Metric)
Supplier Device Package	1206
Ratings	AEC-Q200
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.026" (0.65mm)
Number of Terminations	2
Base Product Number	TNPW1206
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	TNP200KACTR,TNP200KACDKR,2266-TNPW1206200KBEEA,TNPW1206 200K 0.1% T9 ET1 E3,TNP200KACCT,TNPW1206200KBEEA-ND
Standard Package	5,000
Win Source Part Number	1327197-TNPW1206200KBEEA
Ultra Librarian 3D Model	Ultra Librarian TNPW1206200KBEEA CAD Model

Description

The Vishay Dale TNPW1206200KBEEA is a chip resistor designed for surface mount applications.

Manufacturer: Vishay Dale
Product Name: TNPW1206200KBEEA
Composition: Thin Film
Terminations: 2
Resistance: 200 kOhms
Tolerance: ±0.1%
Power Rating: 0.25W
Temperature Coefficient: ±25ppm/°C
AEC-Q200 Rated: Yes
Moisture Resistant: Yes
Package: Reel
Standard Package: 5,000
Size: 0.126” L x 0.063” W (3.20mm x 1.60mm)
Height: 0.026” (0.65mm)
Automotive Application: Yes
Anti-Sulfur: Yes
Temperature Range: -55°C to 155°C
ROHS3 Compliant: Yes
ECCN Rated: EAR99
