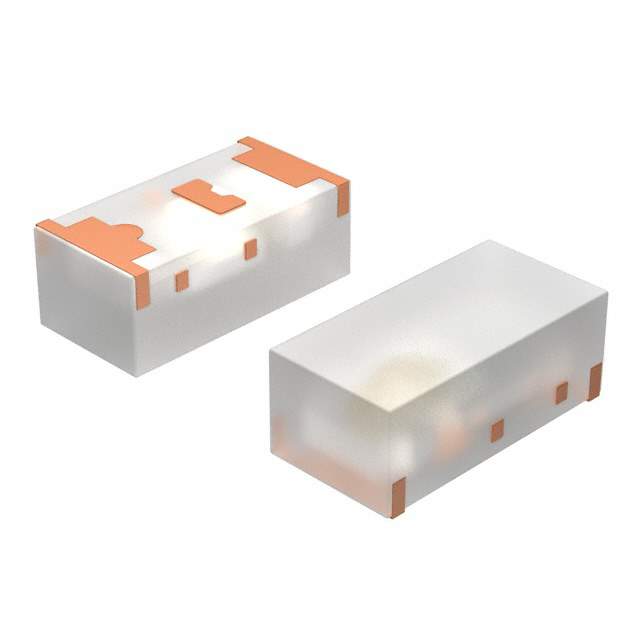

TLMS1000-GS08 Real Image
Same model may have multiple batches, images only for reference.

TLMS1000-GS08

Part No TLMS1000-GS08
Manufacturer Vishay
Catalog LED Indication - Discrete
Description LED RED 0603 SMD / Low Current 0603 SMD LED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Opto Division
Packaging Reel
Color Red
Configuration Standard
Millicandela Rating 4mcd
Lens Style Rectangle with Flat Top
Lens Size 1.60mm x 0.80mm
Voltage - Forward (Vf) (Typ) 1.8V
Current - Test 2mA
Viewing Angle 160°
Mounting Style SMD
Wavelength - Dominant 628nm
Wavelength - Peak 640nm
Manufacturer Package 0603
Supplier Device Package 0603
Dimension 1.60mm L x 0.80mm W
Height (Maximum) 0.65mm
Manufacturer Pack Quantity 3,000
MSL Level 2 (1 Year)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802011-TLMS1000-GS08
Ultra Librarian 3D Model Ultra Librarian TLMS1000-GS08 CAD Model

Description

The Vishay Semiconductor Opto Division 802011-TLMS1000-GS08 is a red SMD LED with a viewing angle of 160 degrees.

  • Millicandela Rating: 4mcd
  • Forward Voltage: 1.8V
  • Package: 0603
  • Lens Style: Rectangle, Flat Top
  • Lens Size: 1.60mm x 0.80mm
  • Height: 0.65mm
  • Packaging: Reel
  • Supply/Demand Status: Balanced
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 2 (Floor Life of 1 year)
