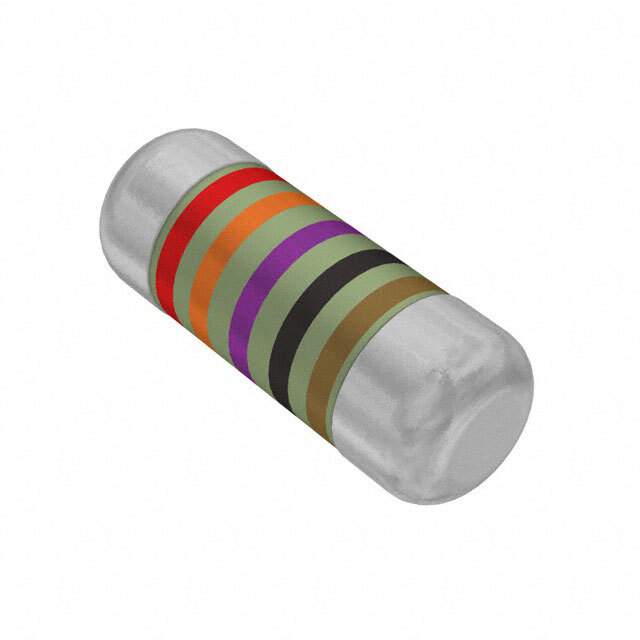

SMM02070C2370FBS00 Real Image1 SMM02070C2370FBS00 Real Image2
Same model may have multiple batches, images only for reference.
SMM02070C2370FBS00 Real Image1 SMM02070C2370FBS00 Real Image2
SMM02070C2370FBS00 Real Image1 SMM02070C2370FBS00 Real Image2
Same model may have multiple batches, images only for reference.

SMM02070C2370FBS00

Part No SMM02070C2370FBS00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 237 OHM 1% 1W MELF / 237 Ohms ±1% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02070C2370FBS00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series SMM0207
Package Tape & Reel (TR)
Resistance 237 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0207
Supplier Device Package MELF
Ratings AEC-Q200
Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Standard Package 7,500
Win Source Part Number 1190233-SMM02070C2370FBS00
Ultra Librarian 3D Model Ultra Librarian SMM02070C2370FBS00 CAD Model

Description

The SMM02070C2370FBS00 is a chip resistor - surface mount component manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Temperature Range: -55°C ~ 155°C
  • Power Rating: 1W
  • Resistor Type: Thin Film
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • AEC-Q200: Rated
  • Features: Anti-Sulfur, Pulse Withstanding
  • Package: MELF, 0207
  • Terminations: 2
  • Resistance: 237 Ohms
  • Standard Package: 7,500
  • Packaging: Tape & Reel (TR)
