Same model may have multiple batches, images only for reference.

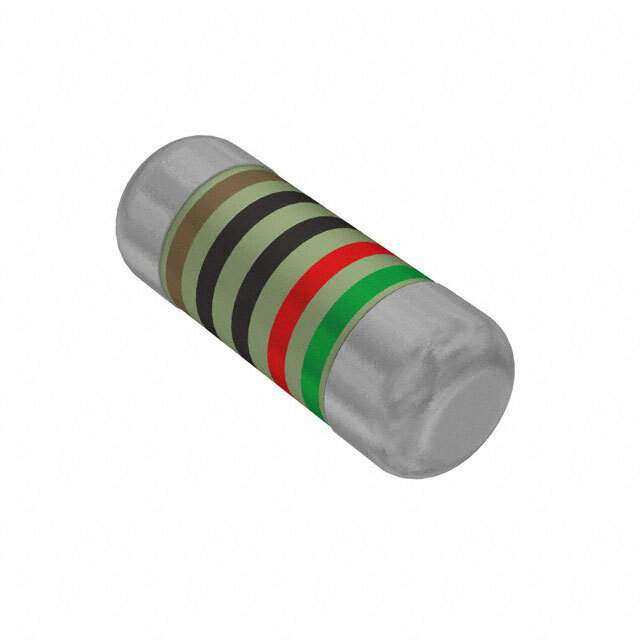

SMM02040E1002DB000 Real Image
Same model may have multiple batches, images only for reference.

SMM02040E1002DB000

Part No SMM02040E1002DB000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 10K OHM 0.5% 1/4W MELF 0204
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Beyschlag
Packaging Reel
Resistance 10 kOhms
Tolerance ±0.5%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±15ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Package MELF, 0204
Supplier Device Package Mini MELF
Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801982-SMM02040E1002DB000
Ultra Librarian 3D Model Ultra Librarian SMM02040E1002DB000 CAD Model

Description

The SMM02040E1002DB000 chip resistor from Vishay Beyschlag is a high-quality resistor.

  • Resistance: 10 kOhms
  • Power Rating: 0.25W (1/4W)
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±15ppm/°C
  • Temperature Range: -55°C to 125°C
  • Package: Mini MELF
  • Supply and Demand Status: Balanced
  • Mounting: Reel
