Same model may have multiple batches, images only for reference.

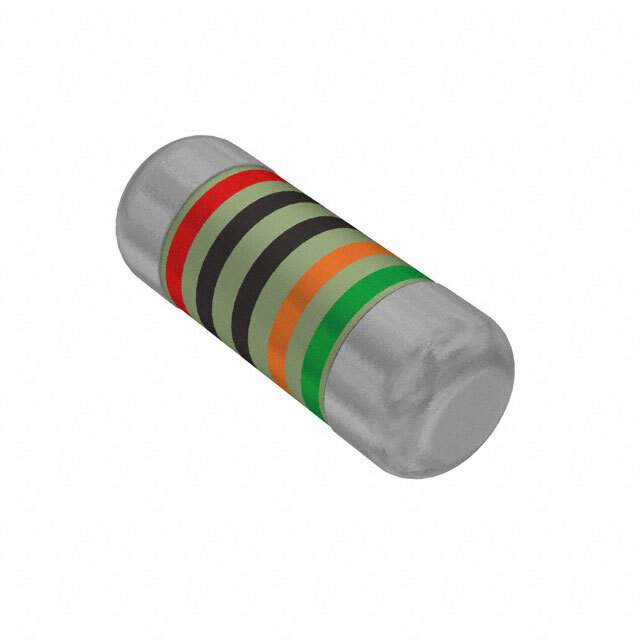

SMM02040D2003DB000 Real Image
Same model may have multiple batches, images only for reference.

SMM02040D2003DB000

Part No SMM02040D2003DB000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 200K OHM 0.5% 1/4W MELF 0204
Datasheet
SMM02040D2003DB000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 40 Weeks
Features 200 kOhms ±0.5% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Manufacturer Vishay
Series SMM0204
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Package MELF, 0204
Case / Package Mini MELF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 896247-SMM02040D2003DB000
Ultra Librarian 3D Model Ultra Librarian SMM02040D2003DB000 CAD Model

Description

The Vishay SMM02040D2003DB000 is a 200 kOhms ±0.5% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film.

  • Package: MELF, 0204
  • Mounting Technology: Surface Mount technology
  • Category: Resistors
  • Popularity: High popularity
  • Supply and Demand Status: Currently balanced
