Same model may have multiple batches, images only for reference.

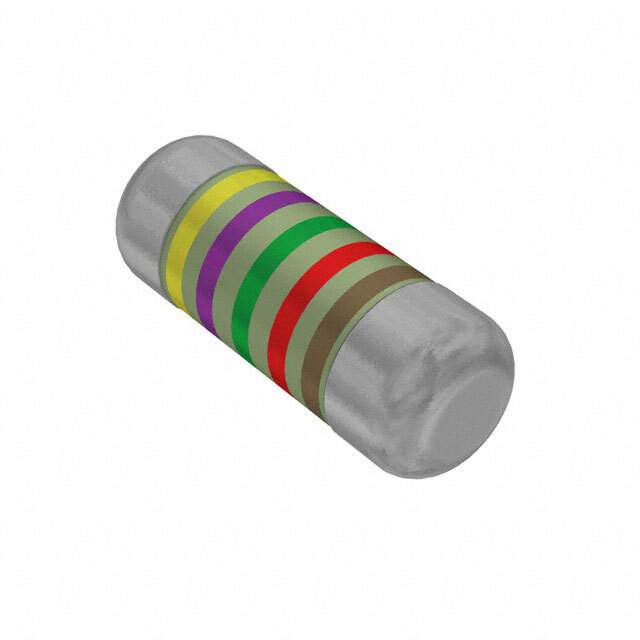

SMM02040C4752FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C4752FB300

Part No SMM02040C4752FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 47.5K OHM 1% 1/4W MELF 0204
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Beyschlag
Packaging Reel
Resistance 47.5 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Package MELF, 0204
Supplier Device Package Mini MELF
Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805409-SMM02040C4752FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C4752FB300 CAD Model

Description

The Vishay Beyschlag SMM02040C4752FB300 is a thin film resistor with a resistance of 47.5 kOhms.

  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 0.25W
  • Features: Pulse withstand, Anti-sulfur, Automotive AEC-Q200 compliant
  • Package: Mini MELF
  • Terminations: 2
  • Mounting: Reel
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 3,000
