Same model may have multiple batches, images only for reference.

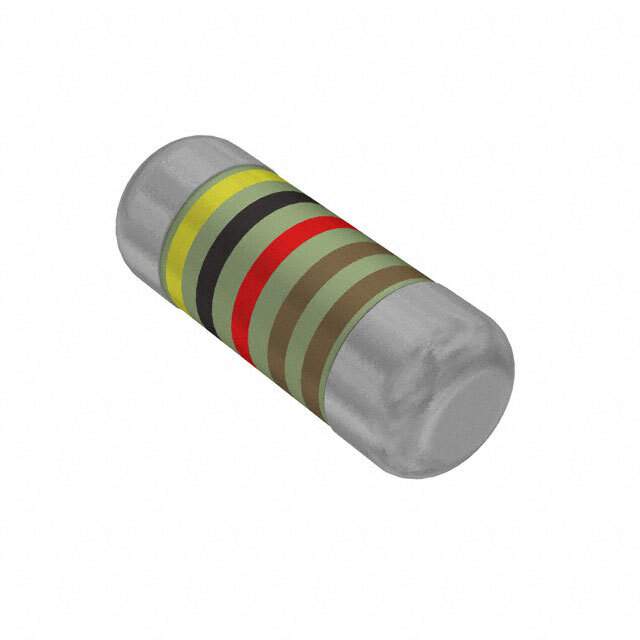

SMM02040C4021FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C4021FB300

Part No SMM02040C4021FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 4.02K OHM 1% 1/4W MELF 0204 / 4.02 kOhms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet
SMM02040C4021FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Beyschlag/Draloric/BC Components
Packaging Reel - TR
Resistance 4.02 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Case / Package MELF, 0204
Supplier Device Package Mini MELF
Ratings AEC-Q200
Size / Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Part Number 749-1274-1,749-1274-2,749-1274-6
Standard Package 3,000
Win Source Part Number 1327140-SMM02040C4021FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C4021FB300 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 1327140-SMM02040C4021FB300 is a chip resistor designed for use in surface mount applications.

  • Resistance: 4.02 kOhms
  • Power Rating: 0.25W (1/4W)
  • Anti-Sulfur: Yes
  • Pulse Withstanding: Yes
  • Automotive Rated: AEC-Q200
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Packaging: Mini MELF (0204)
  • Standard Package: 3,000
  • Operating Temperature: -55°C to 125°C
