Same model may have multiple batches, images only for reference.

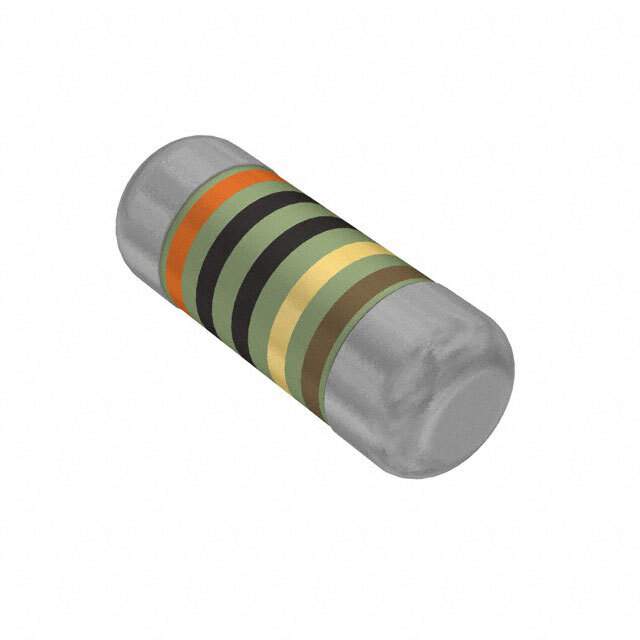

SMM02040C3009FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C3009FB300

Part No SMM02040C3009FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 30 OHM 1% 1/4W 0204
Datasheet
SMM02040C3009FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Status Active
Resistance (Ohms) 30
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C to 125°C
Case / Package MELF
Number of Terminations 2
Win Source Part Number 1098523-SMM02040C3009FB300
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMM02040C3009FB300 CAD Model

Description

The SMM02040C3009FB300 resistor from Vishay is a thin film resistor with a resistance of 30 ohms and a power rating of 0.25 W.

  • Resistance: 30 ohms
  • Power Rating: 0.25 W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50 ppm/°C
  • Package Type: MELF
  • Feature: Pulse Withstanding, Anti-Sulfur
  • Operating Temperature Range: -55°C to 125°C
