Same model may have multiple batches, images only for reference.

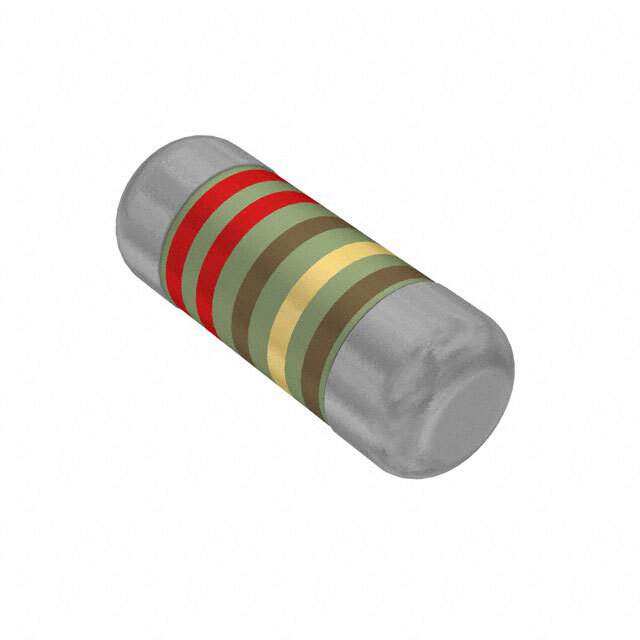

SMM02040C2219FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C2219FB300

Part No SMM02040C2219FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 22.1 OHM 1% 1/4W MELF 0204
Datasheet
SMM02040C2219FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 40 Weeks
Features 22.1 Ohms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Manufacturer Vishay
Series SMM0204
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Package MELF, 0204
Case / Package Mini MELF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Part Number 749-1191-6, 749-1191-2, 749-1191-1
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 896239-SMM02040C2219FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C2219FB300 CAD Model

Description

The electronic component with Id 828149 is a Vishay chip resistor with 22.1 Ohms ±1% 0.25W, 1/4W and pulse withstanding thin film features.

  • Manufacturer: Vishay
  • Popularity: High popularity product
  • Status: Balanced supply and demand status
  • Design: Designed for automotive AEC-Q200
  • Operating Temperature Range: -55°C ~ 125°C
  • Package: Mini MELF package
  • Quantity per package: 3000
