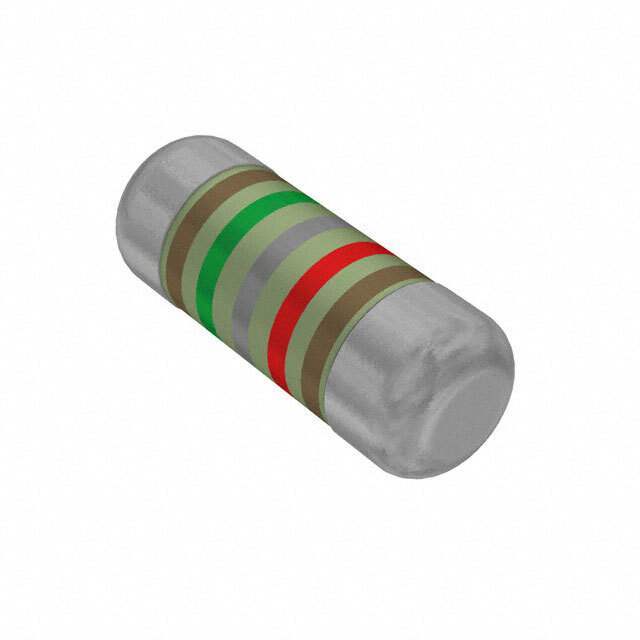

SMM02040C1582FB300 Vishay
Same model may have multiple batches, images only for reference.

SMM02040C1582FB300

Part No SMM02040C1582FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 15.8K OHM 1% 1/4W MELF 0204
Datasheet
SMM02040C1582FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1304225-SMM02040C1582FB300
Manufacturer Vishay
Category Resistors- Chip Resistor - Surface Mount
Packaging  Tape & Reel (TR)
Part Status Active
Resistance (Ohms) 15.8 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Temperature Coefficient ±50ppm/°C
Operating Temperature -55°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian SMM02040C1582FB300 CAD Model

Description

SMM0204 thin film MELF resistors are the perfect choice for most fields of modern electronics where reliability and stability are of major concern. The typical applications in the fields of automotive, industrial and medical equipment reflect the outstanding level of proven reliability.
