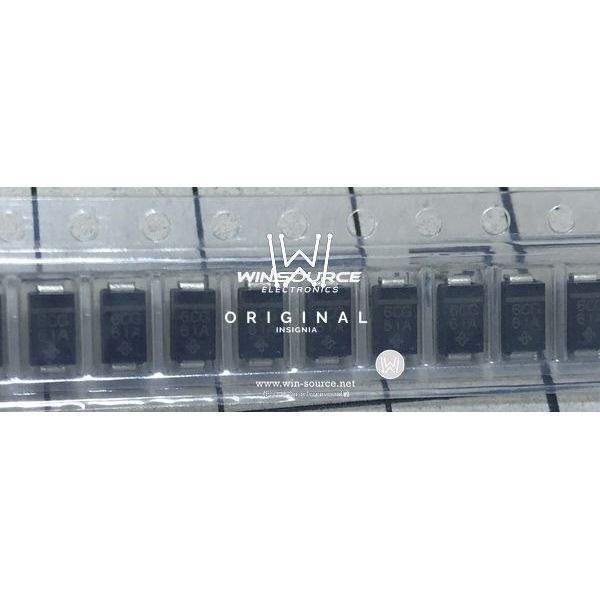

SMA6J28A-E3/61 Real Image SMA6J28A-E3/61 real image
Same model may have multiple batches, images only for reference.
SMA6J28A-E3/61 Real Image SMA6J28A-E3/61 real image
SMA6J28A-E3/61 Real Image SMA6J28A-E3/61 real image
Same model may have multiple batches, images only for reference.

SMA6J28A-E3/61

Part No SMA6J28A-E3/61
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 28V 51.6V DO214AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28V
Voltage - Breakdown (Min) 31.1V
Voltage - Clamping (Maximum) at Ipp 51.6V
Current - Peak Pulse (10/1000μs) 68A (8/20μs)
Power - Peak Pulse 4000W (4kW)
Power Line Protection No
Applications Use For General
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Part Number Series SMA6J
Manufacturer Pack Quantity 1,800
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801528-SMA6J28A-E3/61
Ultra Librarian 3D Model Ultra Librarian SMA6J28A-E3/61 CAD Model

Description

The 801528-SMA6J28A-E3/61 from Vishay Semiconductor Diodes Division is a Zener diode that has a reverse standoff voltage of 28V and a minimum breakdown voltage of 31.1V.

  • Reverse Standoff Voltage: 28V
  • Minimum Breakdown Voltage: 31.1V
  • Peak Pulse Current: 68A (8/20μs)
  • Peak Pulse Power: 4000W (4kW)
  • Package: DO-214AC (SMA)
  • Mounting: SMD
  • Supply/Demand Status: Sufficient
  • Manufacturer Pack Quantity: 1,800
  • MSL Level: 1 (Unlimited)
  • Part Number Series: SMA6J
