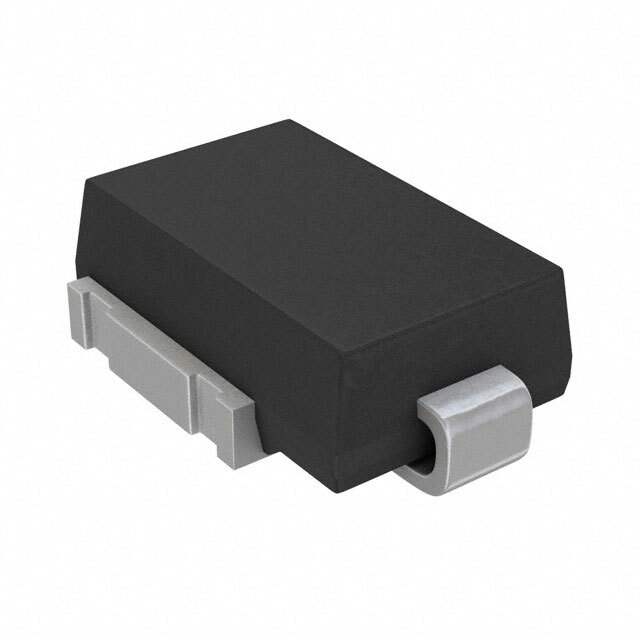

SM8S22ATHE3/I

Name: SM8S22ATHE3/I
Brand: Vishay
SKU: 849012
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SM8S22ATHE3/I
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 22VWM 35.5VC DO218AC / 35.5V Clamp 186A Ipp Tvs Diode Surface Mount DO-218AC
Datasheet	SM8S22ATHE3/I Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Vishay
Series	Automotive, AEC-Q101, PAR®
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	186A
Power - Peak Pulse	6600W (6.6kW)
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-218AC
Supplier Device Package	DO-218AC
Base Product Number	SM8S22
Standard Package	750 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	849012-SM8S22ATHE3/I
Ultra Librarian 3D Model	Ultra Librarian SM8S22ATHE3/I CAD Model

Alternative Products

Description

The SM8S22ATHE3/I is an automotive-grade transient voltage suppressor diode. It is designed to protect sensitive electronic devices from voltage transients induced by lightning, electrostatic discharge (ESD), and other transient voltage events.

Application: Automotive-grade transient voltage suppression
Reverse Standoff Voltage: 22V
Breakdown Voltage: 24.4V
Peak Pulse Power: 6.6kW
Peak Pulse Current: 186A
Mounting: Surface mountable
Package: DO-218AC
Operating Temperature Range: -55°C to 175°C
