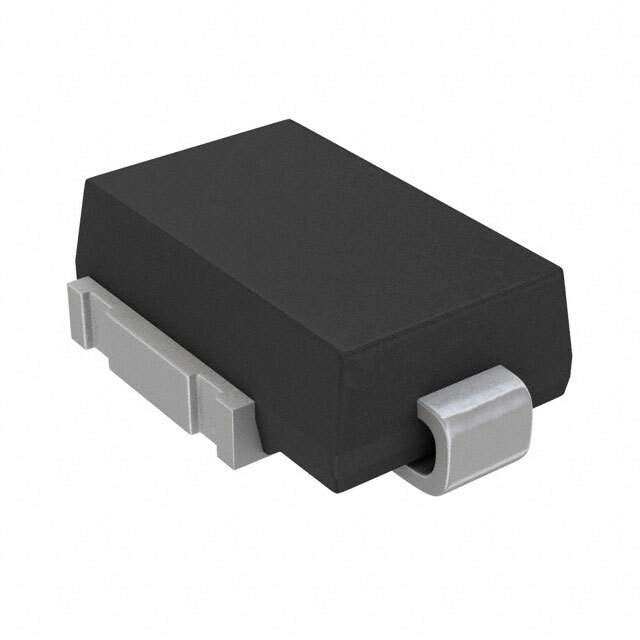

SM5S14ATHE3/I Real Image
Same model may have multiple batches, images only for reference.

SM5S14ATHE3/I

Part No SM5S14ATHE3/I
Manufacturer Vishay
Catalog TVS - Diodes
Datasheet
SM5S14ATHE3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101, PAR®
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 14V
Voltage - Breakdown (Min) 15.6V
Voltage - Clamping (Max) @ Ipp 23.2V
Current - Peak Pulse (10/1000µs) 155A
Power - Peak Pulse 3600W (3.6kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case DO-218AC
Supplier Device Package DO-218AC
Base Product Number SM5S14
Standard Package 750
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1298324-SM5S14ATHE3/I
Ultra Librarian 3D Model Ultra Librarian SM5S14ATHE3/I CAD Model

Description

The SM5S14ATHE3/I is a Zener type TVS diode designed for use in automotive applications. It is a unidirectional channel diode that has a voltage reverse standoff of 14V and a voltage breakdown minimum of 15.6V.

  • Voltage Clamping Maximum @ Ipp: 23.2V
  • Power Peak Pulse: 3600W (3.6kW)
  • Current Peak Pulse (10/1000µs): 155A
  • Package Type: DO-218AC
  • Packaging: Tape and reel (TR)
  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Series: Automotive, AEC-Q101, PAR®
  • Operating Temperature Range: -55°C to 175°C (TJ)
