The SIP32501DNP-T1-GE4 is a highly efficient load switch manufactured by Vishay. This device is designed to control power distribution in portable and handheld devices, as well as other power-sensitive applications. It offers a low on-resistance and integrated protection features to ensure reliable and safe operation.

Applications

• Smartphones and tablets
• Portable media players
• Wearable devices
• Solid-state drives (SSDs)
• Power management in battery-powered systems

Features

• Low on-resistance (R_DS(on))
• Input voltage range: 1.5 V to 5.5 V
• Integrated overvoltage protection (OVP)
• Integrated overcurrent protection (OCP)
• Thermal shutdown protection
• Controlled turn-on slew rate
• Small DFN package

Benefits

• Energy Efficiency: The low on-resistance minimizes power loss, leading to improved energy efficiency and longer battery life in portable devices.
• Circuit Protection: Integrated OVP and OCP protect downstream components from damage due to voltage spikes or excessive current draw.
• Thermal Management: Thermal shutdown protection prevents the device from overheating, ensuring reliable operation even under demanding conditions.
• Controlled Turn-On: The controlled slew rate reduces inrush current, minimizing stress on the power source and preventing voltage droop.
• Compact Size: The small DFN package allows for easy integration into space-constrained applications.

Additional Details

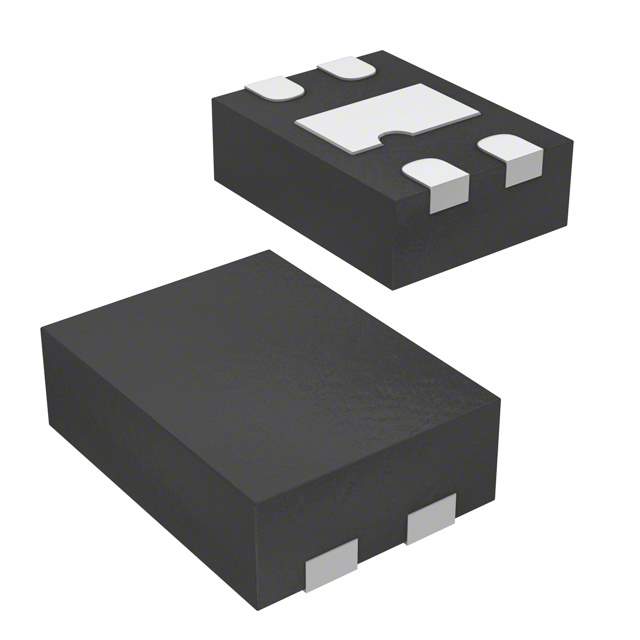

The SIP32501DNP-T1-GE4 operates over an input voltage range of 1.5V to 5.5V. It features a typical on-resistance of 22 mΩ at 5V. The integrated overvoltage protection is typically set to 6.8V. The device also incorporates a thermal shutdown function that activates when the junction temperature exceeds 150°C. It is available in a compact DFN2x2-6 package. This load switch is RoHS compliant and halogen-free.
