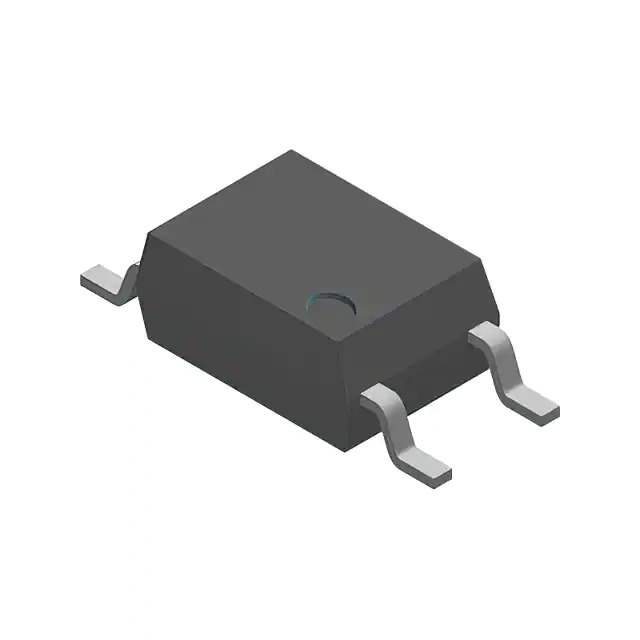

SFH690AT-3077 Real Image
Same model may have multiple batches, images only for reference.

SFH690AT-3077

Part No SFH690AT-3077
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOCOUPLER / Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Vishay
Series SFH690A
Package Bulk
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 150% @ 5mA
Turn On / Turn Off Time (Typ) 5µs, 3µs
Rise / Fall Time (Typ) 3µs, 4µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SOP
Standard Package 1 pcs
REACH Status REACH Unaffected
ECCN OBSOLETE
Win Source Part Number 319212-SFH690AT-3077
Ultra Librarian 3D Model Ultra Librarian SFH690AT-3077 CAD Model

Description

The SFH690AT-3077 is a photovoltaic output optoisolator from Vishay.

  • Output Type: Transistor
  • Input Type: DC
  • Maximum Forward Current: 50mA
  • Forward Voltage: 1.15V
  • Rise/Fall Time: 3µs/4µs
  • Maximum Output Voltage: 70V
  • Package: 4-SMD gull wing
  • Operating Temperature Range: -55°C to 100°C
