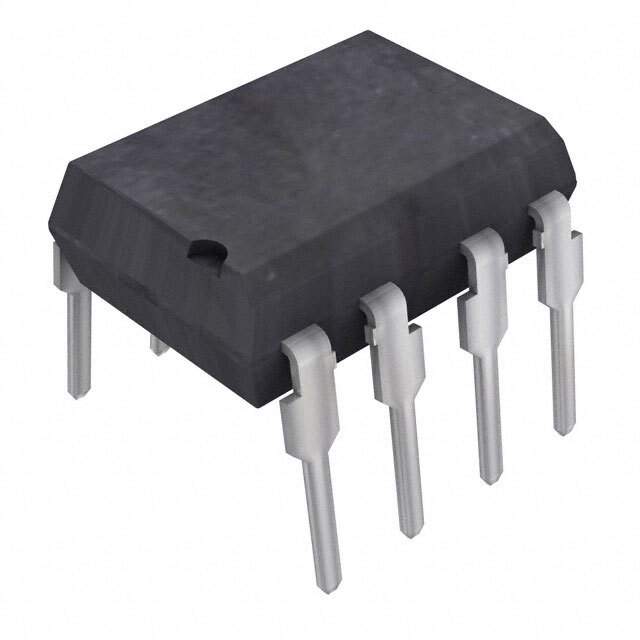

Same model may have multiple batches, images only for reference.

SFH6732-3098

Get a Quote

Part No	SFH6732-3098
Manufacturer	Vishay
Catalog	Optoisolators - Logic Output
Description	OPTOISO 5.3KV 2CH PUSH PULL / Logic Output Optoisolator 5MBd Push-Pull, Totem Pole 5300Vrms 2 Channel 5kV/µs, 10kV/µs CMTI 8-DIP
Datasheet	SFH6732-3098 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators - Logic Output
Mfr	Vishay Semiconductor Opto Division
Package	Bulk
Product Status	Obsolete
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	5300Vrms
Common Mode Transient Immunity (Min)	5kV/µs, 10kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	25 mA
Data Rate	5MBd
Propagation Delay tpLH / tpHL (Max)	300ns, 300ns
Rise / Fall Time (Typ)	40ns, 10ns
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	10mA
Voltage - Supply	4.5V ~ 15V
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
Base Product Number	SFH6732
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	1243471-SFH6732-3098
Ultra Librarian 3D Model	Ultra Librarian SFH6732-3098 CAD Model

Description

The Vishay Semiconductor Opto Division SFH6732-3098 is an optoisolator - logic output component that has a data rate of 5MBd.

Data Rate: 5MBd
Output Type: Push-pull, totem pole
Voltage Supply: 4.5V to 15V
Voltage - Isolation: 5300Vrms
Mounting: Through hole mounting
Temperature Range: -40°C to 85°C
Package: Bulk package
Standard Package: 1
Common Mode Transient Immunity: 5kV/µs or 10kV/µs
