Same model may have multiple batches, images only for reference.

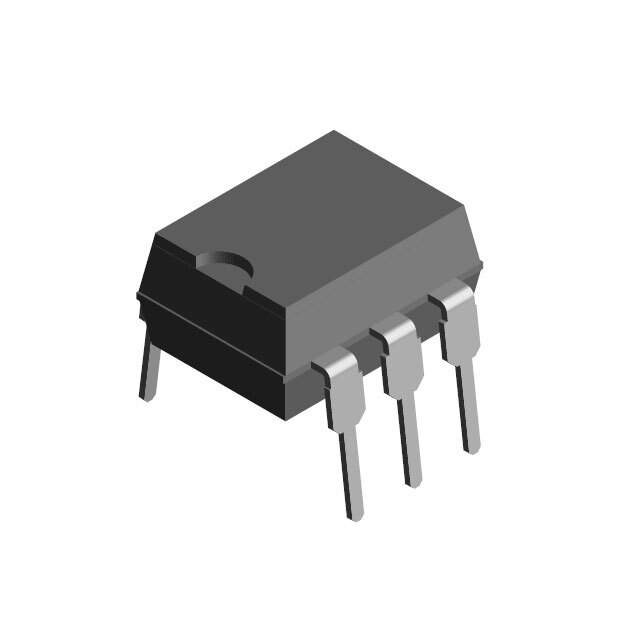

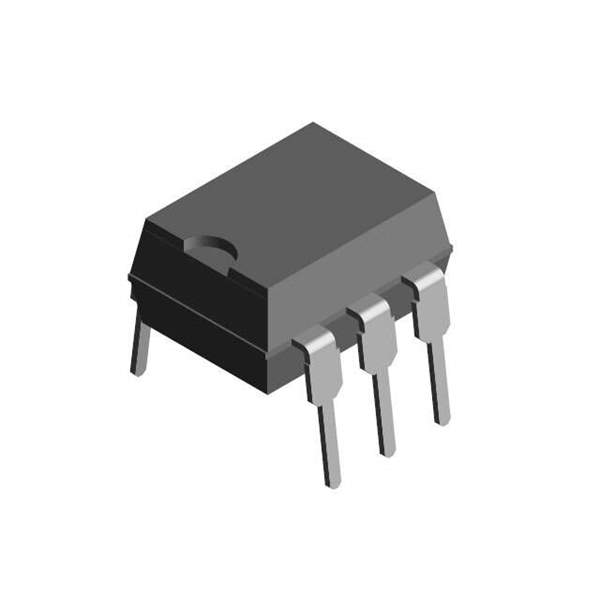

SFH600-0 Real Image
Same model may have multiple batches, images only for reference.

SFH600-0

Part No SFH600-0
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV TRANS W/BASE 6DIP
Datasheet
SFH600-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 40% @ 10mA
Maximum DC Current Transfer Ratio 80% @ 10mA
Switching Turn-On and Turn-Off Time 3.2μs, 3μs
Rise and Fall Time 2μs, 2.5μs
Input Type DC
Maximum Output Voltage 70V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 126481-SFH600-0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SFH600-0 CAD Model

Description

The Vishay SFH600-0 is an isolator product with a mounting type of through-hole and a packaging of tube/rail.

  • Forward Voltage: 1.25V
  • Input Type: designed for DC input type
  • Channels: one channel
  • Maximum Output Voltage: 70V
  • Isolation Voltage: 5300Vrms
  • Temperature Range: -55°C to 100°C
  • Minimum DC Current Transfer Ratio: 40% @ 10mA
  • Maximum DC Current Transfer Ratio: 80% @ 10mA
  • Switching Turn-On Time: 3.2μs
  • Switching Turn-Off Time: 3μs
  • Rise Time: 2μs
  • Fall Time: 2.5μs
  • Channel Output Current: 50mA
  • Continuous Forward Current Max: 60mA
  • Supply and Demand Status: balanced.
