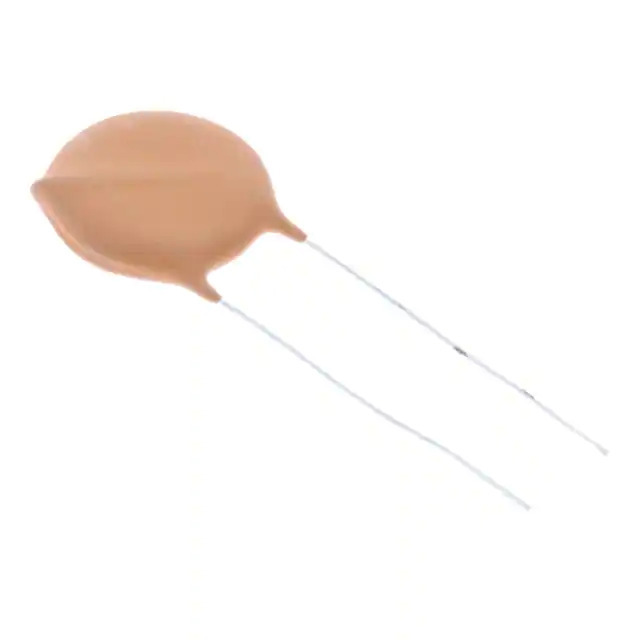

Same model may have multiple batches, images only for reference.
S503Z69Z5UL63L0R Vishay
Same model may have multiple batches, images only for reference.

S503Z69Z5UL63L0R

Part No S503Z69Z5UL63L0R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 0.05UF 500V Z5U RADIAL / 0.05 µF -20%, +80% 500V Ceramic Capacitor Z5U Radial, Disc
Datasheet
S503Z69Z5UL63L0R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Bulk
Product Status Active
Capacitance 0.05 µF
Tolerance -20%, +80%
Voltage - Rated 500V
Temperature Coefficient Z5U
Temperature Range - Operating -30°C ~ 125°C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension -
Height - Seated (Max) -
Thickness (Max) -
Lead Spacing -
Lead Style -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1359957-S503Z69Z5UL63L0R
Ultra Librarian 3D Model Ultra Librarian S503Z69Z5UL63L0R CAD Model

Description

The S series ceramic capacitor from Vishay Beyschlag/Draloric/BC Components is a versatile component with a capacitance of 0.05 µF and a voltage rating of 500V.

  • Capacitance: 0.05 µF
  • Voltage Rating: 500V
  • Temperature Range: -30°C to 125°C
  • Mounting Type: Through-Hole
  • Package: Radial, Disc
  • HTSUS Code: 8532.23.0060
  • Tolerance: -20% to +80%
  • REACH Status: Unaffected
  • ECCN Code: EAR99
  • Temperature Coefficient: Z5U
  • Product Status: Active
