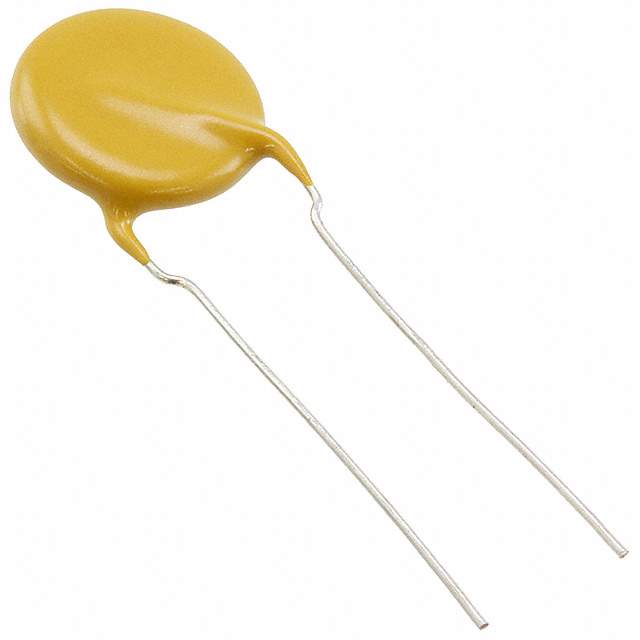

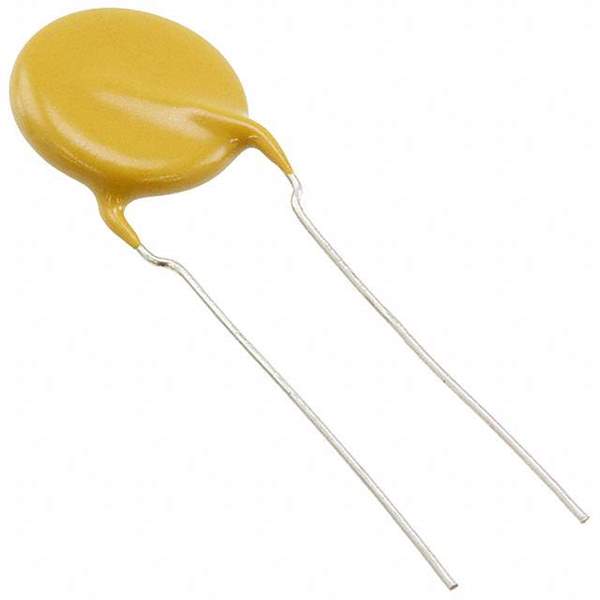

Same model may have multiple batches, images only for reference.

S222K59Y5PR63K7R

Name: S222K59Y5PR63K7R
Brand: Vishay
SKU: 1350658
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S222K59Y5PR63K7R
Manufacturer	Vishay
Catalog	Ceramic Capacitors
Description	CAP CER 2200PF 3KV Y5P RADIAL / 2200 pF ±10% 3000V (3kV) Ceramic Capacitor Y5P (B) Radial, Disc
Datasheet	S222K59Y5PR63K7R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	S
Package	Bulk
Capacitance	2200 pF
Tolerance	±10%
Voltage - Rated	3000V (3kV)
Temperature Coefficient	Y5P (B)
Temperature Range - Operating	-30°C ~ 125°C
Applications	General Purpose
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.591" Dia (15.00mm)
Height - Seated (Max)	0.780" (19.80mm)
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked
Standard Package	500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.23.0060
Win Source Part Number	1350658-S222K59Y5PR63K7R
Ultra Librarian 3D Model	Ultra Librarian S222K59Y5PR63K7R CAD Model

Alternative Products

Description

This Vishay ceramic capacitor is a general-purpose component with a capacitance of 2200 pF and a voltage rating of 3000V (3kV).

Capacitance: 2200 pF
Voltage Rating: 3000V (3kV)
Tolerance: ±10%
Temperature Coefficient: Y5P (B)
Package Type: Radial, Disc
Mounting Type: Through Hole
Product Dimensions: 0.591" Dia (15.00mm)
Height Seated (Max): 0.780" (19.80mm)
Status: Active
REACH: Unaffected
