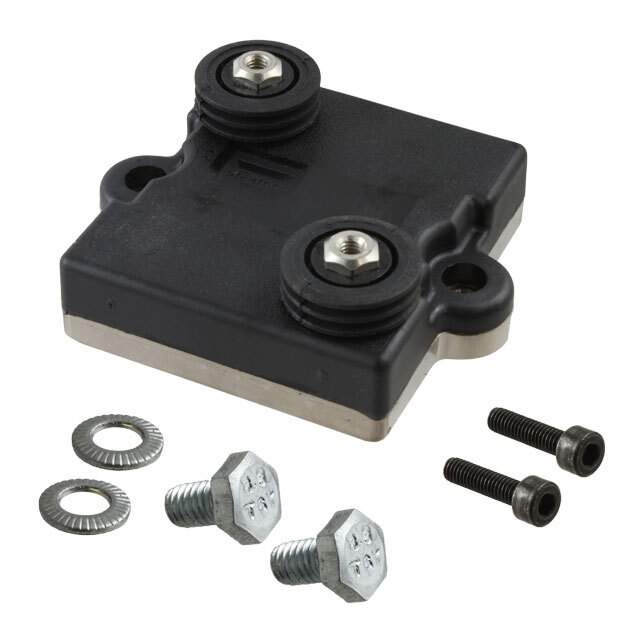

RPS0500DH1000JB Real Image
Same model may have multiple batches, images only for reference.

RPS0500DH1000JB

Part No RPS0500DH1000JB
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 100 OHM 5% 500W / 100 Ohms ±5% 500W Thick Film Chassis Mount Resistor
Datasheet
RPS0500DH1000JB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Vishay Sfernice
Series RPS 500
Package Bulk
Resistance 100 Ohms
Tolerance ±5%
Power (Watts) 500W
Composition Thick Film
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Features Pulse Withstanding
Coating, Housing Type Aluminum Oxide
Mounting Feature Flanges
Dimension 2.874" L x 2.362" W (73.00mm x 60.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Lead Style M4 Threaded
Package / Case Box
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.29.0000
Other Names RPSDH-100A
Standard Package 15
Win Source Part Number 1055485-RPS0500DH1000JB
Ultra Librarian 3D Model Ultra Librarian RPS0500DH1000JB CAD Model

Description

The RPS0500DH1000JB is a chassis mount resistor that is used for various applications.

  • Feature: pulse withstanding component
  • Package: bulk package
  • Manufacturer: Vishay Sfernice
  • Win Source Part Number: 1055485-RPS0500DH1000JB
  • Resistance: 100 Ohms
  • Power: 500W
  • Temperature Range: -55°C to 125°C
  • Height: 1.063 inches
