Same model may have multiple batches, images only for reference.

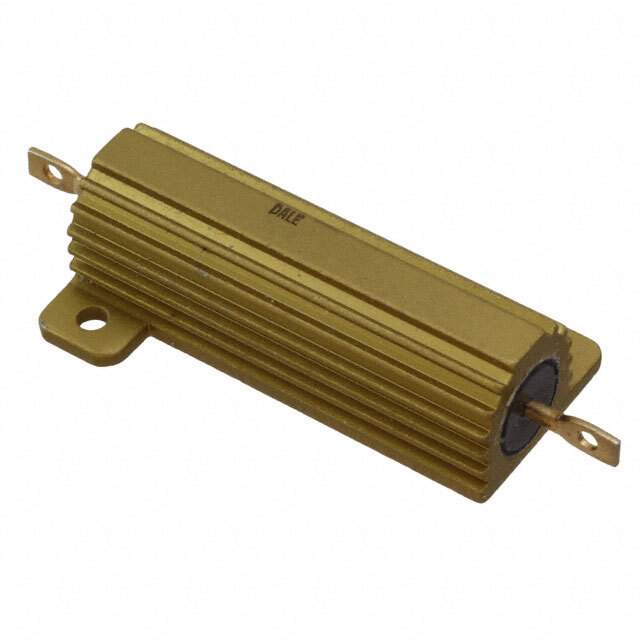

RHA05012R00FE02 Real Image
Same model may have multiple batches, images only for reference.

RHA05012R00FE02

Part No RHA05012R00FE02
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description WIREWOUND CHASSIS MOUNT RESISTOR / 12 Ohms ±1% 50W Wirewound Chassis Mount Resistor
Datasheet
RHA05012R00FE02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Vishay Dale
Series RHA
Package Bulk
Resistance 12 Ohms
Tolerance ±1%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Features Automotive AEC-Q200
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 1.968" L x 1.140" W (49.99mm x 28.96mm)
Height - Seated (Max) 0.625" (15.87mm)
Lead Style Solder Lugs
Package / Case Axial, Box
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names 541-RHA05012R00FE02
Standard Package 100
Win Source Part Number 1012653-RHA05012R00FE02
Ultra Librarian 3D Model Ultra Librarian RHA05012R00FE02 CAD Model

Description

The Vishay Dale RHA series resistor is a wirewound resistor with a resistance of 12 Ohms and a power rating of 50W.

  • Resistance: 12 Ohms
  • Power Rating: 50W
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Application: Automotive
  • Compliance: AEC-Q200
  • Seated Height: 0.625" (15.87mm)
  • Operating Temperature Range: -55°C to 250°C
  • Mounting: Flanges
  • Package: Bulk
  • Composition: Wirewound
  • Housing Type: Aluminum Coating
  • Package/Case: Axial Box
  • Dimensions: 1.968" L x 1.140" W (49.99mm x 28.96mm)
  • Manufacturer: Vishay Dale
  • Failure Rate: Not Applicable
  • ECCN: EAR99
  • HTSUS: 8533.29.0000
