Same model may have multiple batches, images only for reference.

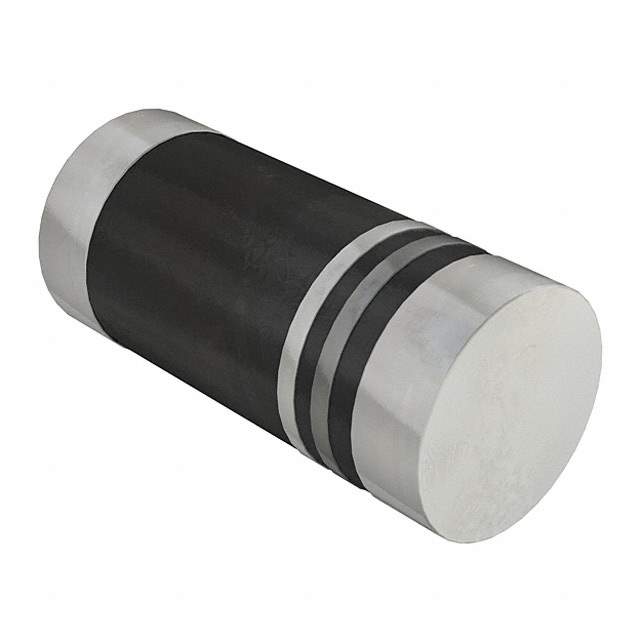

RGL34A-E3/98 Real Image
Same model may have multiple batches, images only for reference.

RGL34A-E3/98

Part No RGL34A-E3/98
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 50V 500MA DO213AA
Datasheet
RGL34A-E3/98 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1.3V @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 150ns
Current - Reverse Leakage @ Vr 5μA @ 50V
Capacitance @ Vr, F 4pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-213AA (GL34)
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 116934-RGL34A-E3/98
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RGL34A-E3/98 CAD Model

Description

The Vishay 116934-RGL34A-E3/98 is a standard diode designed for use in electronic circuits.

  • Maximum DC Reverse Voltage: It has a maximum DC reverse voltage of 50V
  • Average Rectified Current: and an average rectified current of 500mA.
  • Forward Voltage: The forward voltage of this diode is 1.3V @ 500mA
  • Reverse Recovery Time: and the reverse recovery time is 150ns.
  • Current Reverse Leakage: It has a current reverse leakage of 5μA @ 50V
  • Capacitance: and a capacitance of 4pF @ 4V, 1MHz.
