Same model may have multiple batches, images only for reference.

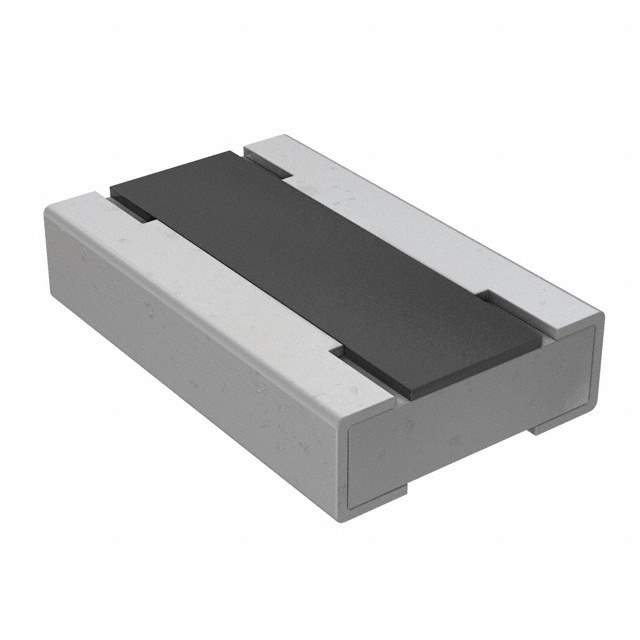

RCL040633R0JNEA Real Image
Same model may have multiple batches, images only for reference.

RCL040633R0JNEA

Part No RCL040633R0JNEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 33 OHM 1/4W 0604 WIDE / 33 Ohms ±5% 0.25W, 1/4W Chip Resistor Wide 0604 (1610 Metric), 0406 Automotive AEC-Q200 Thick Film
Datasheet
RCL040633R0JNEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 33 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package Wide 0604 (1610 Metric), 0406
Supplier Device Package 0406
Ratings AEC-Q200
Size / Dimension 0.039" L x 0.063" W (1.00mm x 1.60mm)
Height - Seated (Max) 0.018" (0.45mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-1954-1,541-1954-2,541-1954-6,RCL040633R0JNEA-ND
Standard Package 5,000
Win Source Part Number 1326312-RCL040633R0JNEA
Ultra Librarian 3D Model Ultra Librarian RCL040633R0JNEA CAD Model

Description

The Vishay Dale chip resistor is a thick film, surface mount resistor that is part of the RCL0406 family.

  • Family: RCL0406
  • Automotive AEC-Q200 Compliant: Yes
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Package: Reel-TR
  • Quantity per Package: 5000
  • Size/Dimension: 0.039" L x 0.063" W (1.00mm x 1.60mm)
  • MSL Level: 1
  • REACH: Unaffected
  • HTSUS: 8533.21.0030
