PTS0805M1B500RP100 Vishay

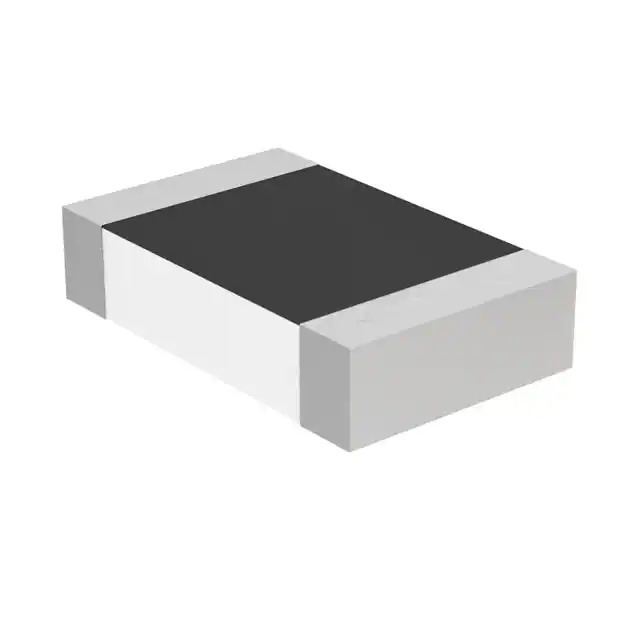

Same model may have multiple batches, images only for reference.

PTS0805M1B500RP100

Part No PTS0805M1B500RP100
Manufacturer Vishay
Catalog Temperature Sensors - RTD (Resistance Temperature Detector)
Description SENSOR RTD 500OHM 0.3K 0805
Datasheet
PTS0805M1B500RP100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Temperature Sensors - RTD (Resistance Temperature Detector)
Mfr Vishay Beyschlag/Draloric/BC Components
Series Automotive, AEC-Q200, PTS
Package Tape & Reel
Product Status Active
Resistance @ 0°C 500 Ohms
Resistance Tolerance ±0.3K
RTD Material Platinum (Pt)
Temperature Range - Operating -55°C ~ 175°C
Termination SMD (SMT) Tabs
Accuracy -
Temperature Coefficient 3850ppm/°C
Current 400 µA
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375624-PTS0805M1B500RP100
Ultra Librarian 3D Model Ultra Librarian PTS0805M1B500RP100 CAD Model

Description

The PTS0805M1B500RP100 is a temperature sensor RTD (Resistance Temperature Detector) from Vishay Beyschlag/Draloric/BC Components.

  • Resistance in Ohms @ 0°C: 500
  • Temperature Coefficient: 3850ppm/°C
  • Operating Temperature: -55°C ~ 175°C
  • Mounting Type: Surface Mount
  • Package / Case: 0805 (2012 Metric)
  • Termination Style: SMD (SMT) Tabs
  • Series: PTS
  • Status: Active
  • Applications: Automotive
  • AEC-Q200: Yes
