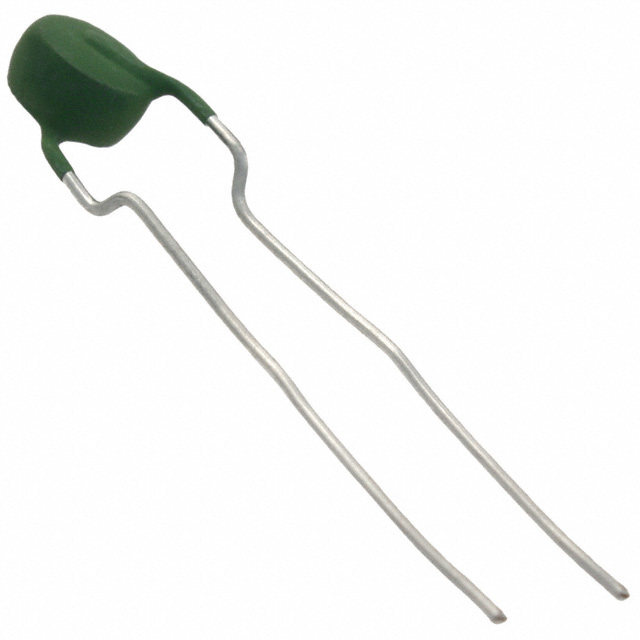

Same model may have multiple batches, images only for reference.
PTCTL7MR100SBE Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PTCTL7MR100SBE

Part No PTCTL7MR100SBE
Manufacturer Vishay
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 600V 175MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Ceramic
Voltage - Max 600V
Current - Hold (Ih) (Max) 175 mA
Current - Trip (It) 400 mA
Current - Max 1 A
Time to Trip 7 s
Resistance - 25°C (Typ) 10 Ohms
Temperature Range - Operating 0°C ~ 70°C
Mounting Type Through Hole
Case / Package Radial, Disc
Size / Dimension 0.512" Dia x 0.217" T (13.00mm x 5.50mm)
Height - Seated (Max) 0.709" (18.00mm)
Lead Spacing 0.197\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1607882-PTCTL7MR100SBE
Ultra Librarian 3D Model Ultra Librarian PTCTL7MR100SBE CAD Model

Description

N
