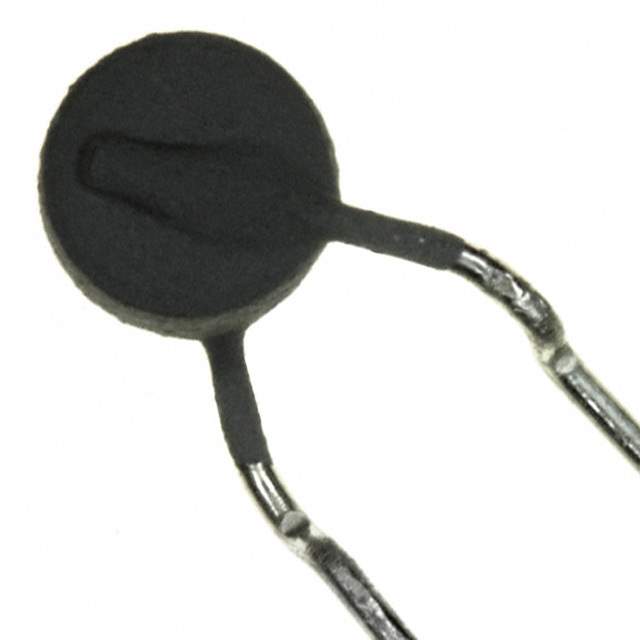

PTCCL05H100SBE Real Image
Same model may have multiple batches, images only for reference.

PTCCL05H100SBE

Part No PTCCL05H100SBE
Manufacturer Vishay
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 600V RADIAL DISC / Ceramic PTC Resettable Fuse 600V 10 mA Ih Through Hole Radial, Disc
Datasheet
PTCCL05H100SBE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series PTCCL - 600V
Package Bulk
Type Ceramic
Voltage - Max 600V
Current - Max 2 A
Current - Hold (Ih) (Max) 10 mA
Current - Trip (It) 20 mA
Resistance - 25°C (Typ) 1.6 kOhms
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.197" Dia x 0.177" T (5.00mm x 4.50mm)
Height - Seated (Max) 0.409" (10.40mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UL
Base Product Number PTCCL
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8070
Other Names Q1482119,232266093034,BC3368,2322 660 93034-ND,2322 660 93034-NDR,PTCCL05H100SBC,2322 660 93034
Standard Package 500
Win Source Part Number 973407-PTCCL05H100SBE
Ultra Librarian 3D Model Ultra Librarian PTCCL05H100SBE CAD Model

Description

The PTCCL05H100SBE is a PTC resettable fuse from Vishay Beyschlag/Draloric/BC Components.

  • Fuse Type: ceramic
  • Voltage Maximum: 600V
  • Current Maximum: 2A
  • Current Hold (Ih) Maximum: 10mA
  • Current Trip (It): 20mA
  • Mounting Type: through-hole
  • Package/Case: radial, disc
  • Operating Temperature Range: -20°C ~ 85°C
  • Height: 0.409" (10.40mm)
  • Thickness: -
  • Lead Spacing: 0.197" (5.00mm)
  • Resistance @ 25°C (Typ): 1.6 kOhms
  • Applications: general-purpose
