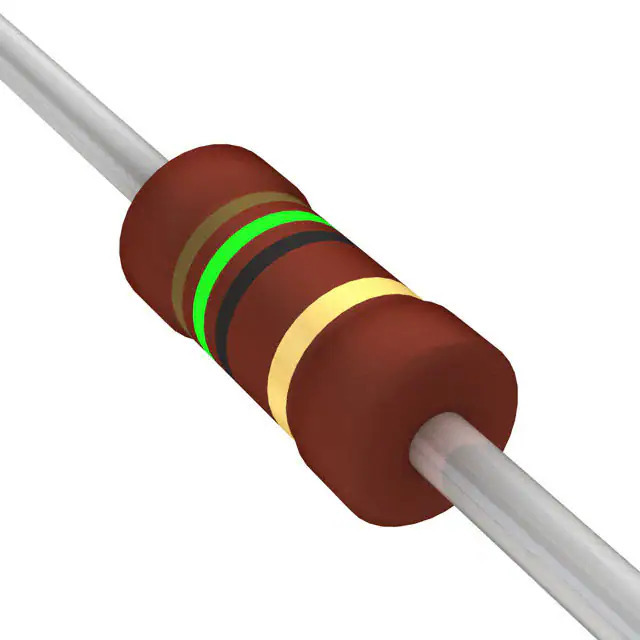

Same model may have multiple batches, images only for reference.
PR03000201509JAC00 Vishay
Same model may have multiple batches, images only for reference.

PR03000201509JAC00

Part No PR03000201509JAC00
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 15 OHM 3W 5% AXIAL
Datasheet
PR03000201509JAC00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR03
Product Status Active
Resistance 15 Ohms
Tolerance ±5%
Power (Watts) 3W
Composition Metal Film
Features Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374958-PR03000201509JAC00
Ultra Librarian 3D Model Ultra Librarian PR03000201509JAC00 CAD Model

Description

The 1374958-PR03000201509JAC00 is a through-hole resistor from Vishay Beyschlag/Draloric/BC Components' PR03 series.

  • Resistance: 15 Ohms
  • Tolerance: ±5%
  • Features: Flame Retardant Coated, Fusible, Safety Features
  • Package/Case: Axial
  • Size/Dimension: 0.205" Dia x 0.657" L (5.20mm x 16.70mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Temperature Coefficient: ±250ppm/°C
  • Component Status: Active
