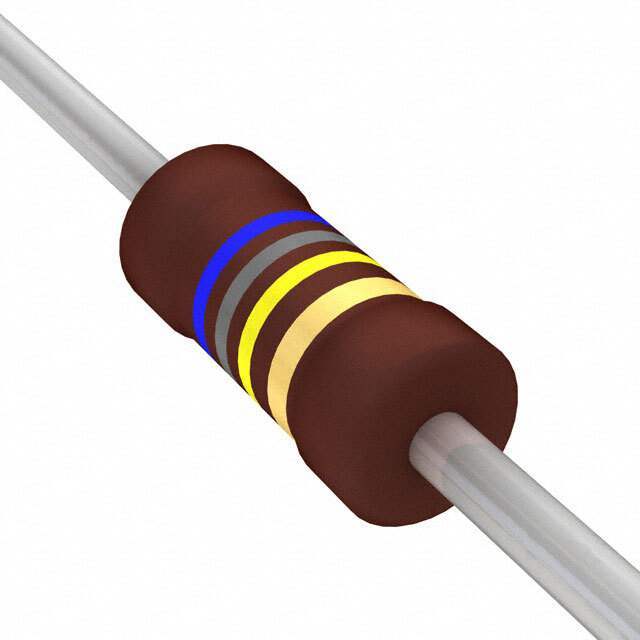

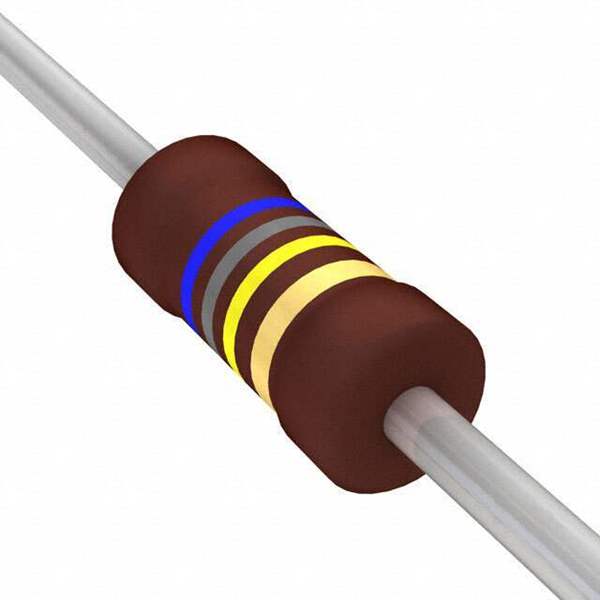

Same model may have multiple batches, images only for reference.

PR02000206803JR500

Name: PR02000206803JR500
Brand: Vishay
SKU: WS1304896
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PR02000206803JR500
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 680K OHM 5% 2W AXIAL
Datasheet	PR02000206803JR500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1304896-PR02000206803JR500
Manufacturer	Vishay
Category	Resistors-Through Hole Resistors
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Resistance (Ohms)	680 kOhms
Tolerance (+ or -)	±5%
Power (Watts)	2W
Composition	Metal Film
Features	Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Package / Case	Axial
Ultra Librarian 3D Model	Ultra Librarian PR02000206803JR500 CAD Model

Description

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper or copper-clad iron are welded to the end-caps. The resistors are coated with a red, non-flammable lacquer which provides electrical, mechanical and climatic protection. This coating is not resistant to aggressive fluxes and cleaning solvents. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
