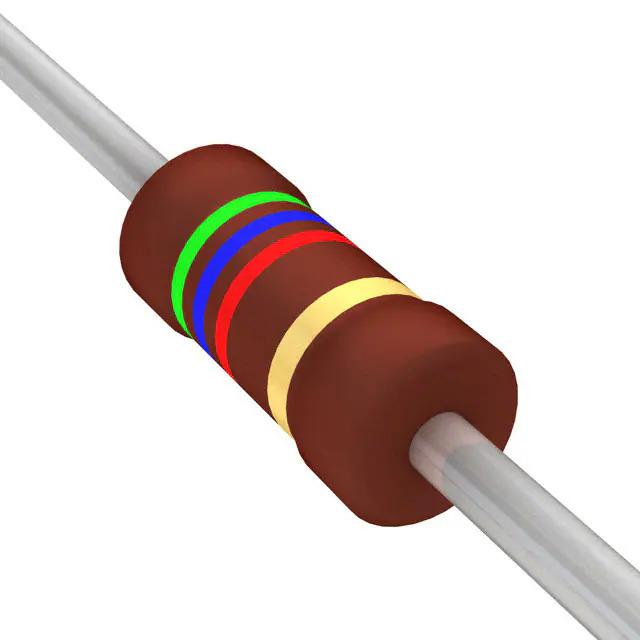

Same model may have multiple batches, images only for reference.
PR02000205601JR500 Vishay
Same model may have multiple batches, images only for reference.

PR02000205601JR500

Part No PR02000205601JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 5.6K OHM 2W 5% AXIAL
Datasheet
PR02000205601JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR02
Package Tape & Reel (TR)
Product Status Active
Resistance 5.6 kOhms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.154" Dia x 0.394" L (3.90mm x 10.00mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374608-PR02000205601JR500
Ultra Librarian 3D Model Ultra Librarian PR02000205601JR500 CAD Model

Description

The PR02 series resistor is a through-hole resistor with a resistance of 5.6 kOhms and a power rating of 2W.

  • Series: Vishay Beyschlag/Draloric/BC Components
  • Composition: Metal film
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Applications: Automotive AEC-Q200, flame retardant coating, and safety
  • Package/Case: Axial
  • Terminations: 2
  • Packaging: Tape and reel
  • REACH Compliant: Yes
  • ECCN: EAR99
