Same model may have multiple batches, images only for reference.

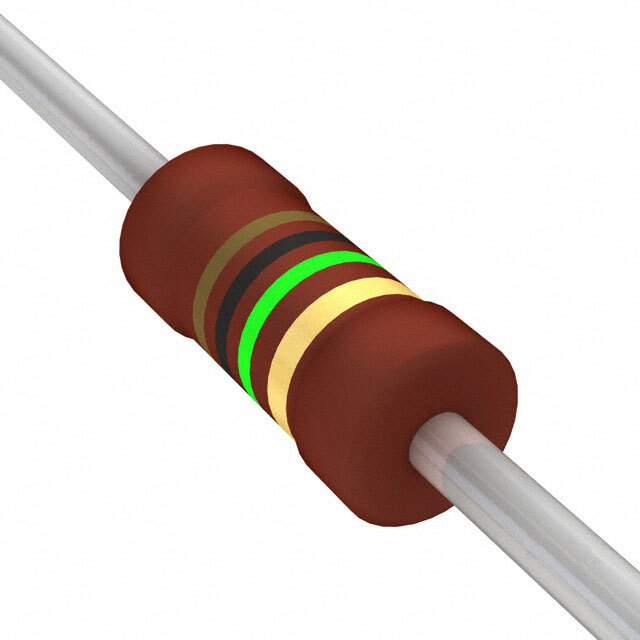

PR01000101004JA100 Real Image
Same model may have multiple batches, images only for reference.

PR01000101004JA100

Part No PR01000101004JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 1M OHM 5% 1W AXIAL / 1 MOhms ±5% 1W Through Hole Resistor Axial Automotive AEC-Q200, Flame Retardant Coating, Safety Metal Film
Datasheet
PR01000101004JA100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR01
Package Cut Tape (CT),Tape & Box (TB)
Resistance 1 mOhms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names BC4689CT,BC4689TB
Standard Package 1,000
Win Source Part Number 1130242-PR01000101004JA100
Ultra Librarian 3D Model Ultra Librarian PR01000101004JA100 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components PR01 series resistor is a metal film resistor with a resistance of 1 mOhms and a power rating of 1W.

  • Resistance: 1 mOhms
  • Power Rating: 1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Applications: Automotive AEC-Q200, Flame Retardant Coating, and Safety
  • Package Options: Cut Tape (CT) and Tape & Box (TB)
  • Package/Case Type: Axial
  • Terminations: 2
  • Height of Seated Package: Not Specified
  • Operating Temperature Range: -55°C to 155°C
