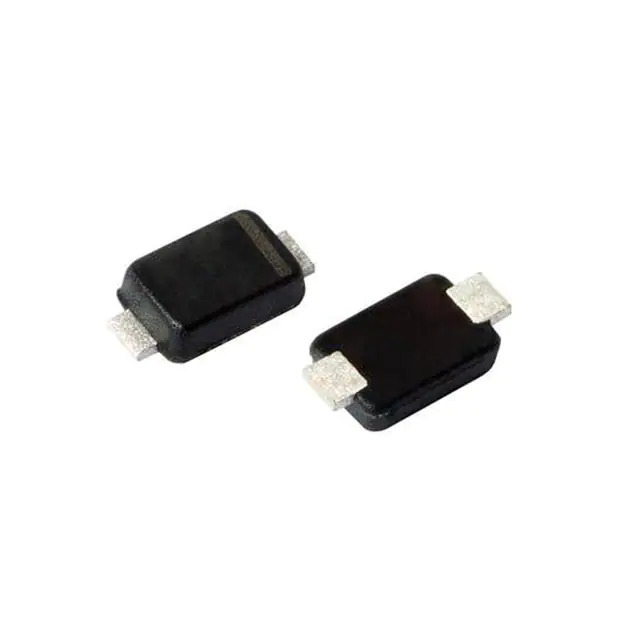

Same model may have multiple batches, images only for reference.

PLZ5V1C-HG3_A/H

Name: PLZ5V1C-HG3_A/H
Brand: Vishay
SKU: 1367559
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PLZ5V1C-HG3_A/H
Manufacturer	Vishay
Catalog	Diodes - Zener - Single
Description	DIODE ZENER 5.23V 960MW DO219AC
Datasheet	PLZ5V1C-HG3_A/H Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr	Vishay General Semiconductor - Diodes Division
Series	Automotive, AEC-Q101, PLZ
Package	Tape & Reel
Product Status	Active
Voltage - Zener (Nom) (Vz)	5.23 V
Tolerance	±2.68%
Power - Max	960 mW
Impedance (Max) (Zzt)	20 Ohms
Current - Reverse Leakage @ Vr	5 µA @ 1.5 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA
Temperature Range - Operating	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-219AC
Supplier Device Package	DO-219AC (microSMF)
Base Product Number	PLZ5V1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0050
Win Source Part Number	1367559-PLZ5V1C-HG3_A/H
Ultra Librarian 3D Model	Ultra Librarian PLZ5V1C-HG3_A/H CAD Model

Alternative Products

Description

The PLZ5V1C-HG3_A/H is a Zener diode manufactured by Vishay General Semiconductor - Diodes Division.

Series: PLZ
Application: Automotive
Nominal Zener Voltage: 5.23V
Zener Voltage Tolerance: ±2.68%
Power Rating: 960mW
Maximum Forward Voltage: 900mV @ 10mA
Reverse Leakage Current: 5μA @ 1.5V
Mounting Type: Surface Mount
Package: DO-219AC (microSMF)
REACH: Unaffected
