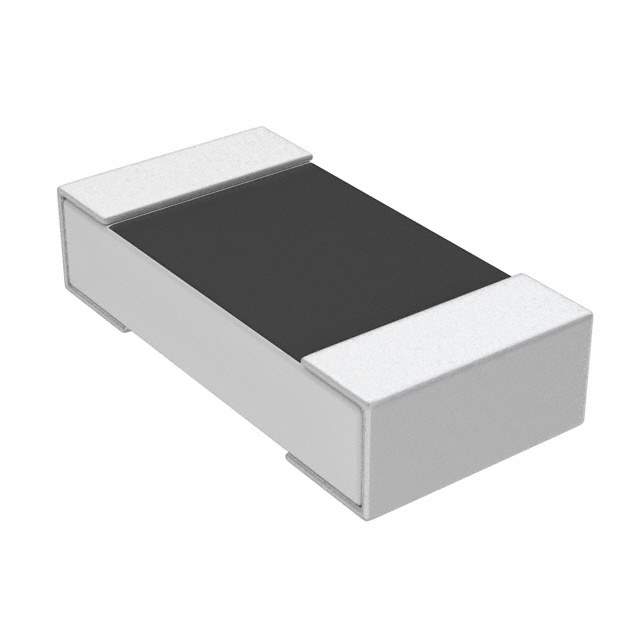

PLT0603Z5000AST5 Real Image
Same model may have multiple batches, images only for reference.

PLT0603Z5000AST5

Part No PLT0603Z5000AST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 500 OHM 0.05% 0.15W 0603 / 500 Ohms ±0.05% 0.15W Chip Resistor 0603 (1608 Metric) Anti-Corrosive, Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PLT0603Z5000AST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PLT
Package Tape & Reel
Resistance 500 Ohms
Tolerance ±0.05%
Power (Watts) 0.15W
Composition Thin Film
Features Anti-Corrosive, Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±5ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max) 0.020" (0.51mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1341361-PLT0603Z5000AST5
Ultra Librarian 3D Model Ultra Librarian PLT0603Z5000AST5 CAD Model

Description

The PLT series chip resistor is a surface-mount component with a package size/dimension of 0.064 inches L x 0.032 inches W (1.63 mm x 0.81 mm) and a height of 0.020 inches (0.51 mm) when seated.

  • Packaging: Tape & Reel
  • Standard Package: 500
  • Tolerance: ±0.05%
  • Temperature Coefficient: ±5ppm/°C
  • Features: Anti-Corrosive, Flameproof, Moisture-Resistant, and Safety Rated
  • Power Rating: 0.15W
  • Composition: Thin Film
  • Terminations: 2
  • Resistance: 500 Ohms
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Temperature Range: -55°C to 125°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
