Same model may have multiple batches, images only for reference.

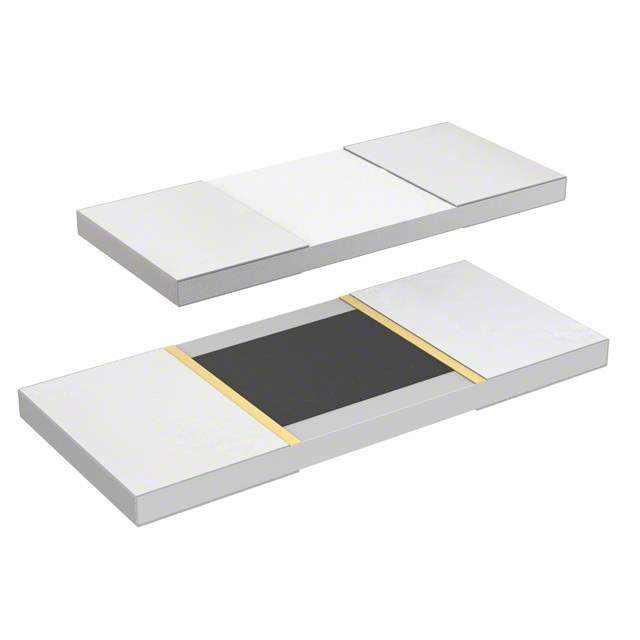

PHP02512E75R0BST5 Real Image
Same model may have multiple batches, images only for reference.

PHP02512E75R0BST5

Part No PHP02512E75R0BST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 75 OHM 0.1% 2.5W 2512 / 75 Ohms ±0.1% 2.5W Chip Resistor 2512 (6432 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PHP02512E75R0BST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PHP
Package Tape & Reel
Resistance 75 Ohms
Tolerance ±0.1%
Power (Watts) 2.5W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.259" L x 0.124" W (6.58mm x 3.15mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1348597-PHP02512E75R0BST5
Ultra Librarian 3D Model Ultra Librarian PHP02512E75R0BST5 CAD Model

Description

The Vishay Dale Thin Film PHP02512E75R0BST5 is a surface mount chip resistor with a resistance of 75 Ohms and a power rating of 2.5W.

  • Size: 0.259" L x 0.124" W (6.58mm x 3.15mm)
  • Height: 0.033" (0.84mm)
  • Features: flame proof, moisture resistant, and has a safety feature
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Terminations: 2
  • Composition: thin film
  • Packaging: tape and reel
  • Standard Package: 500
  • Operating Temperature: -55°C to 155°C
  • Series: PHP series
