Same model may have multiple batches, images only for reference.

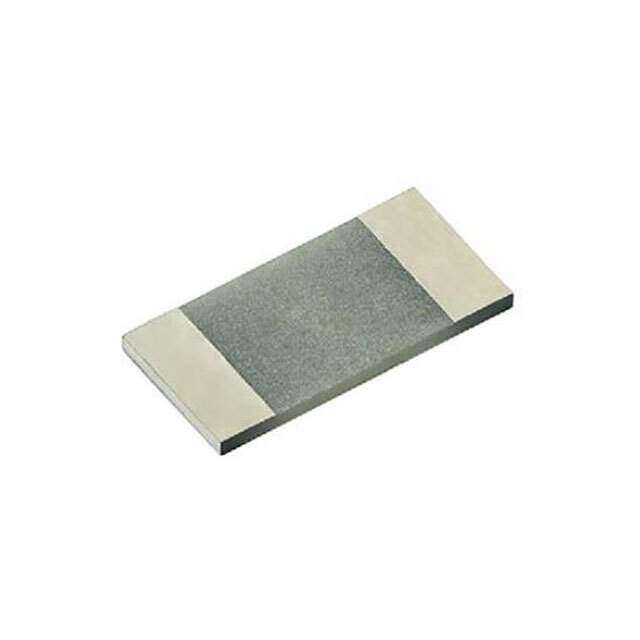

PCNM1206E1002BST5 Real Image
Same model may have multiple batches, images only for reference.

PCNM1206E1002BST5

Part No PCNM1206E1002BST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 10K OHM 0.1% 2W 1206 / 10 kOhms ±0.1% 2W Chip Resistor 1206 (3216 Metric) Flame Proof, Moisture Resistant, Non-Magnetic, Safety Thin Film
Datasheet
PCNM1206E1002BST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PCNM
Package Tape & Reel
Resistance 10 kOhms
Tolerance ±0.1%
Power (Watts) 2W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Non-Magnetic, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339453-PCNM1206E1002BST5
Ultra Librarian 3D Model Ultra Librarian PCNM1206E1002BST5 CAD Model

Description

The Vishay Dale Thin Film Chip Resistor is a surface-mount resistor that is part of the company's PCNM series.

  • Resistance: 10 kOhms
  • Power Rating: 2W
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Packaging: Tape & Reel
  • Standard Package: 500
