Same model may have multiple batches, images only for reference.

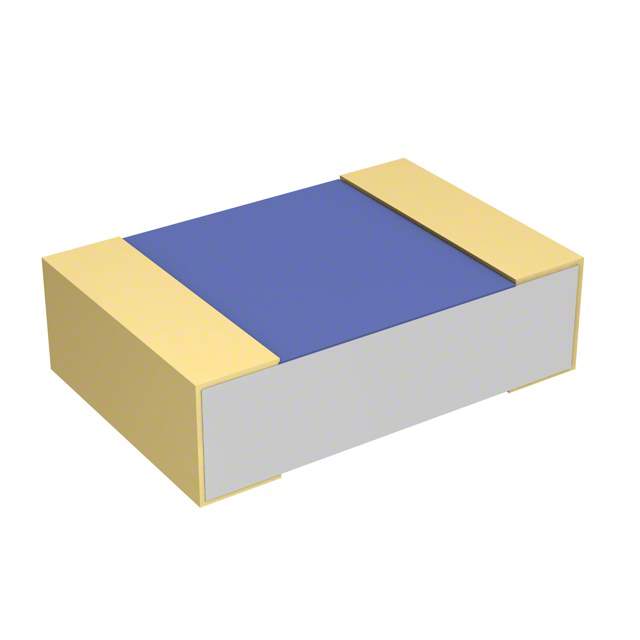

P2TC1206D2002LNTA Real Image
Same model may have multiple batches, images only for reference.

P2TC1206D2002LNTA

Part No P2TC1206D2002LNTA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description P2TC1206 2PPM/C 20K 0,01% N TA / 20 kOhms ±0.01% 0.333W, 1/3W Chip Resistor 1206 (3216 Metric) Anti-Sulfur Thin Film
Datasheet
P2TC1206D2002LNTA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Sfernice
Series P2TC
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 20 kOhms
Tolerance ±0.01%
Power (Watts) 0.333W, 1/3W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±2ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.120" L x 0.063" W (3.06mm x 1.60mm)
Height - Seated (Max) 0.025" (0.63mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 716-P2TC1206D2002LNTACT,716-P2TC1206D2002LNTATR
Standard Package 100
Win Source Part Number 1111212-P2TC1206D2002LNTA
Ultra Librarian 3D Model Ultra Librarian P2TC1206D2002LNTA CAD Model

Description

The P2TC1206D2002LNTA from Vishay is a chip resistor that has a resistance of 20 kOhms and a power rating of 0.333W or 1/3W.

  • Resistance: 20 kOhms
  • Power Rating: 0.333W or 1/3W
  • Tolerance: ±0.01%
  • Temperature Coefficient: ±2ppm/°C
  • Packaging: Tape and Reel or Cut Tape
  • Standard Package: 100
  • Composition: Thin Film
  • Terminations: Two
  • Series: P2TC
  • Anti-Sulfur: Yes
  • Height: 0.025" (0.63mm)
  • Temperature Range: -55°C to 155°C
  • Case: 1206 (3216 Metric)
  • ECCN: EAR99
  • HTSUS: 8533.21.0030
