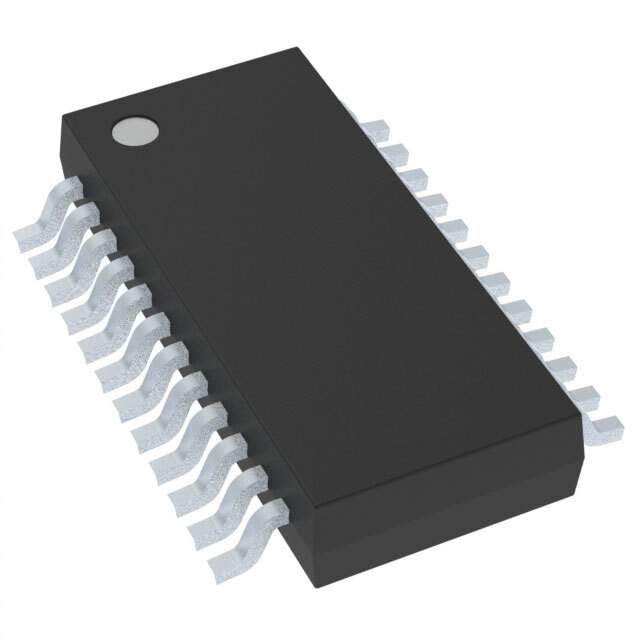

OSOPTC1001AT0 Real Image
Same model may have multiple batches, images only for reference.

OSOPTC1001AT0

Part No OSOPTC1001AT0
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES ARRAY 12RES 1K OHM 20SSOP
Datasheet
OSOPTC1001AT0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Status Active
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±0.1%
Number of Resistors 12
Number of Pins 24
Power Per Element 100mW
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height - Seated (Max) 0.068" (1.73mm)
Win Source Part Number 1090561-OSOPTC1001AT0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian OSOPTC1001AT0 CAD Model

Description

The Vishay 1090561-OSOPTC1001AT0 resistor is a surface-mount device that is used for circuit isolation.

  • Mounting Type: Surface Mount
  • Application: Circuit Isolation
  • Resistance: 1k ohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Number of Resistors: 12
  • Number of Pins: 24
  • Power Per Element: 100mW
  • Operating Temperature: -55°C to 125°C
