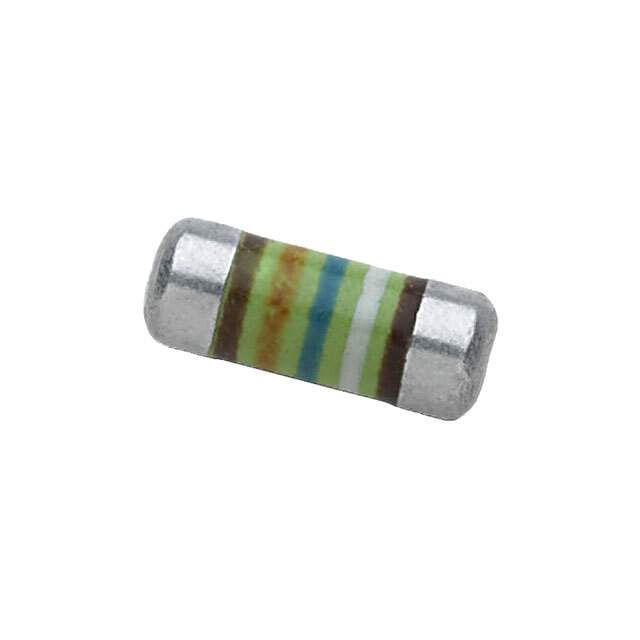

Same model may have multiple batches, images only for reference.

OMM02040000000B000

Name: OMM02040000000B000
Brand: Vishay
SKU: 1083153
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	OMM02040000000B000
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	OMM0204 0R0 B0 MS1 / 0 Ohms Jumper 0.4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Datasheet	OMM02040000000B000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	SMM0204
Package	Tape & Reel
Resistance	0 Ohms
Tolerance	Jumper
Power (Watts)	0.4W
Composition	Thin Film
Features	Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	MELF, 0204
Supplier Device Package	0204
Ratings	AEC-Q200
Dimension	0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0040
Other Names	749-OMM02040000000B000DKR,749-OMM02040000000B000CT,749-OMM02040000000B000TR
Standard Package	10,000
Win Source Part Number	1083153-OMM02040000000B000
Ultra Librarian 3D Model	Ultra Librarian OMM02040000000B000 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components SMM0204 is a thin film chip resistor with a resistance of 0 Ohms.

Resistance: 0 Ohms
Resistor Type: Thin Film Chip Resistor
Power Rating: 0.4W
AEC-Q200 Rating: Yes (Automotive Applications)
Features: Pulse Withstanding and Anti-Sulfur
Package: Tape and Reel
Device Package: MELF 0204
Terminations: 2
Operating Temperature: -55°C to 155°C
Alternate Cross-Reference Parts: MMA02040Z0000ZB300 and MMA02040Z0000ZB000
