Same model may have multiple batches, images only for reference.

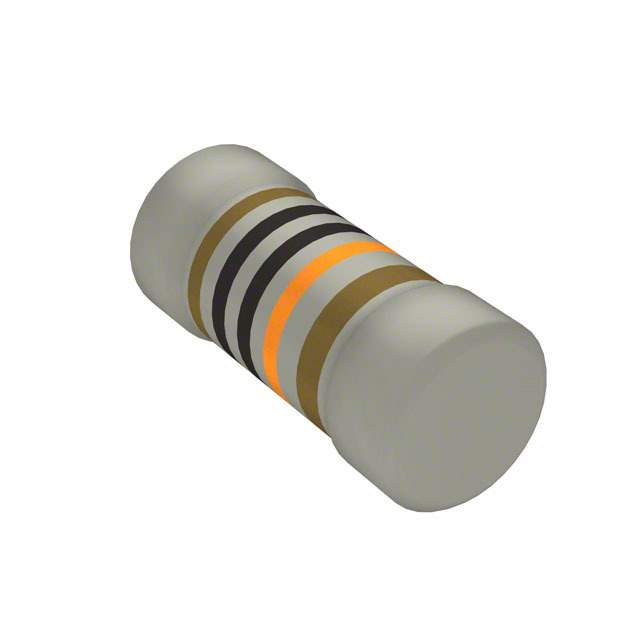

MMU01020C8200FB300 Real Image
Same model may have multiple batches, images only for reference.

MMU01020C8200FB300

Part No MMU01020C8200FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 820 OHM 1% 0.3W MELF 0102  /  820 Ohms ±1% 0.3W Chip Resistor MELF, 0102 Anti-Sulfur, Automotive AEC-Q200 Thin Film
Datasheet
MMU01020C8200FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MMU - Professional
Package Tape & Reel
Resistance 820 Ohms
Tolerance ±1%
Power (Watts) 0.3W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0102
Supplier Device Package 0102
Ratings AEC-Q200
Dimension 0.043" Dia x 0.087" L (1.10mm x 2.20mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names 749-1420-6,749-1420-1,749-1420-2
Standard Package 3,000
Win Source Part Number 1114566-MMU01020C8200FB300
Ultra Librarian 3D Model Ultra Librarian MMU01020C8200FB300 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 1114566-MMU01020C8200FB300 is a thin film chip resistor with a resistance of 820 Ohms and a power rating of 0.3W.

  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • RoHS Compliant: Yes
  • Category: Resistors>Chip Resistor - Surface Mount
  • AEC-Q200 Rating: Yes
  • Features: Anti-sulfur and automotive
  • Supply and Demand Status: Shortage
