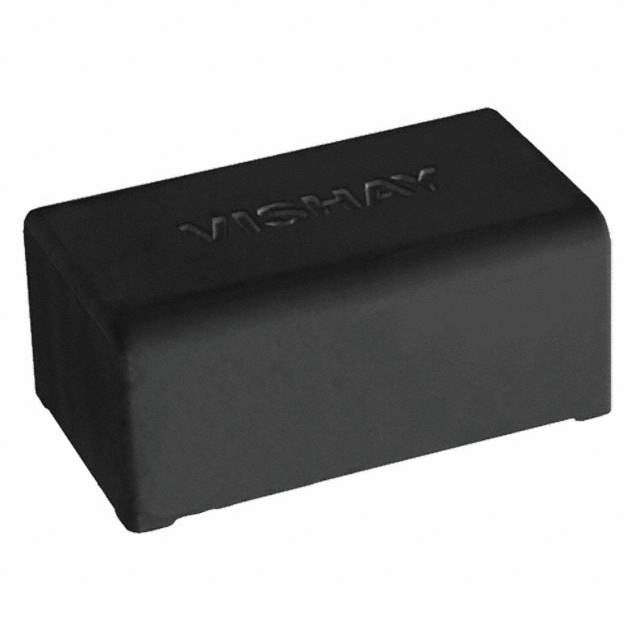

MKP1848S62010JY5F Real Image1 MKP1848S62010JY5F Real Image2
Same model may have multiple batches, images only for reference.
MKP1848S62010JY5F Real Image1 MKP1848S62010JY5F Real Image2
MKP1848S62010JY5F Real Image1 MKP1848S62010JY5F Real Image2
Same model may have multiple batches, images only for reference.

MKP1848S62010JY5F

Part No MKP1848S62010JY5F
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 20UF 5% 1KVDC RADIAL / 20 µF Film Capacitor 1000V (1kV) Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
MKP1848S62010JY5F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay
Series MKP1848S DC-Link
Package Bulk
Capacitance 20 µF
Tolerance ±5%
Voltage Rating - AC -
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 9.5 mOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Size / Dimension 2.264" L x 1.535" W (57.50mm x 39.00mm)
Height - Seated (Max) 0.945" (24.00mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications DC Link, DC Filtering
Ratings -
Features Low ESR; Low ESL; Long Life
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0070
Standard Package 35 pcs
Win Source Part Number 1382893-MKP1848S62010JY5F
Ultra Librarian 3D Model Ultra Librarian MKP1848S62010JY5F CAD Model

Description

The MKP1848S62010JY5F is a film capacitor designed for DC link and DC filtering applications.

  • Series: MKP1848S DC-Link
  • Features: Low ESR, Low ESL
  • Capacitance: 20μF
  • Voltage Rating: 1000V (1kV)
  • Termination: PC Pins
  • Package: Bulk
  • Dimensions: 2.264" L x 1.535" W (57.50mm x 39.00mm)
  • Manufacturer: Vishay
